Description
Graduation 0,001 mm

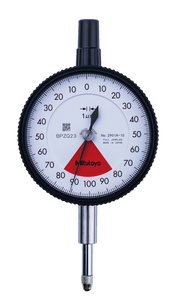

This is a one revolution dial indicator. It offers you the following benefits:
- Bezel clamp and lifting lever (optional) can be attached to either right or left side.
- No through screw holes on the frame as well as the use of an O-ring prevents water or oil penetration.
- It eliminates the possibility of reading errors due to miscounting multiple revolutions.
Features
| Digital/Analog: | Analog |
| Inch-Metric: | Metric |
| Functions: | ISO type |
| Range: | 0,16 mm (plunger stroke: 4,1 mm) |
| Range per rev.: | 0.2 mm |
| Graduation: | 0.001 mm |
| Graduation: | 0.001 |
| Scale: | 0-100-0 |
| Measuring force: | 0,4-1,5 |
| MPE any 1/10 revolution: | 2 ?m |
| MPE measuring range: | 4 ?m |
| H MPE (Hysteresis): | 2 ?m |
| R MPE (Repeatability): | 1 ?m |
| Stem: | 8 mm |
| Contact point: | Carbide tipped, thread: M 2.5 x 0.45 mm |
| One revolution: | Yes |
| Shockproof: | Yes |
| Mass: | 149 g |
