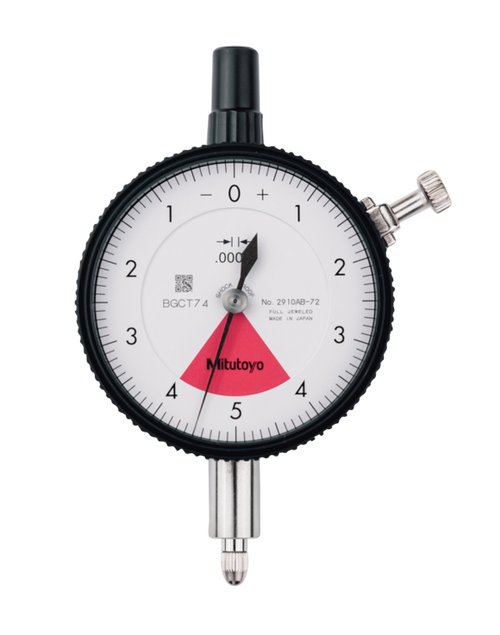

Description
One Revolution Type for Error-free Reading- Light weight type / standard type
- Limiting pointer rotation to one revolution eliminates the reading errors that can occur with dial indicators featuring more than one revolution of the pointer for full stroke.
Features
| Digital/Analog: | Analog |
| Inch-Metric: | Inch |
| Functions: | ANSI/AGD type |
| Range: | 0,008" (plunger stroke: 2,2 mm) |
| Range: | 0,008" " |
| Range per rev.: | 0.01" |
| Graduation: | 0,0001" |
| Accuracy: | ?0,0001" |
| Measuring force: | 0,4-2,5 |
| Error of indication one revolution: | ?0,0001" |
| Type: | ANSI/AGD Standard |
| Stem: | 9.52 mm / 0.375" |
| Contact point: | Carbide tipped, thread: 4-48UNF |
| One revolution: | Yes |
| Cushioned end point: | Yes |
| Shockproof: | Yes |
| Mass: | 138 g |
