Description

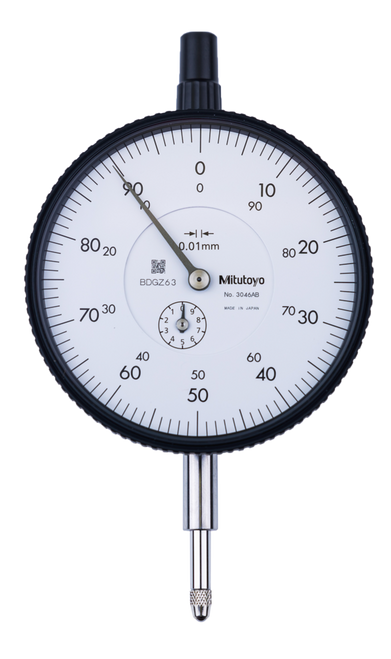

This is a standard dial indicator. It offers you the following benefits:- Large-diameter dial face ? = 78 mm for easy reading
- 0,01 / 0,001 mm graduation
Features
| Digital/Analog: | Analog |
| Inch-Metric: | Metric |
| Range: | 10 mm |
| Range per rev.: | 1 mm |
| Graduation: | 0.01 mm |
| Scale: | 0-100 (100-0) |
| MPE any 1/10 revolution: | 5 ?m |
| MPE any 1/2 revolution: | 9 ?m |
| MPE any 1 revolution: | 10 ?m |
| MPE measuring range: | 15 ?m |
| H MPE (Hysteresis): | 3 ?m |
| R MPE (Repeatability): | 3 ?m |
| Measuring force: | 0,4-1,4 N |
| Stem: | 8 mm |
| Contact point: | Carbide tipped, thread: M 2.5 x 0.45 mm |
| Delivered: | With certificate of inspection |
| Mass: | 237 g |
| Continuous dial: | Yes |
| fu: | 3 ?m |
| Functions: | ISO type |
