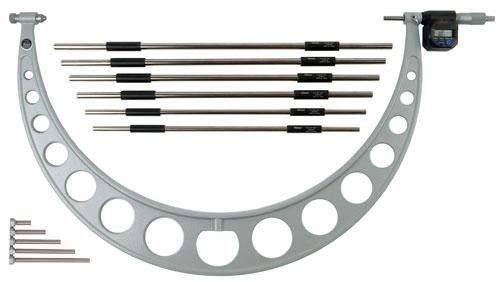

Mitutoyo 340-722* Digital Outside Micrometer 12-18" / 304.8-457.2mm Interchangeable Anvils
(No reviews yet)
Write a Review
Write a Review
Mitutoyo
Mitutoyo 340-722* Digital Outside Micrometer 12-18" / 304.8-457.2mm Interchangeable Anvils
$1,529.50
- Brand
- Mitutoyo
- SKU:
- 340-722*
Description
A Mitutoyo digital micrometer provided with easily interchangeable anvils to enable a wide measuring range from one instrument. A ratchet stop guarantees repeatable measurement. Digimatic data output.Specification
| Inch-Metric: | Inch/Metric |
| Range: | 24 - 30 |
| Digital step: | 0,0001"/0,001 mm |
| Spindle feed error: | 0.00015" ?m |
| Parallelism: | [0,00008+0,00004(L/4)]?, L = max. range (inch) |
| Display: | LCD, character height 7.5 mm |
| Digital/Analog: | Digital |
| Measuring face: | Carbide tipped, micro-lap finish spindle and hardened steel anvil |
| Measuring spindle: | With spindle lock, ?6,35 mm (?300 mm) ? 8 mm (>300 mm) , spindle pitch 0,5 mm |
| Scale: | Thimble and sleeve satin chrome finish, ?21 mm |
| Measuring force: | 10 - 15 |
| Power supply: | Battery SR-44 |
| Battery life: | Approx. 2,4 years for models ?300 mm 1,8 years for >300 mm |
| Battery life: | Approx. 1,8 years |
| Setting standard: | 6 (24, 25, 26, 27, 28, 29") |
| Interchangeable anvils: | 6 |
| Delivered: | including box, gauge block, inserts, key, 1 battery |
| Mass: | 7.7 |
| 2 x PRESET: | Yes |
