Mitutoyo 3416A Offers
Features
- Offered with lug back for mounting purposes
- Bezel diameter: 3.07" (78 mm)
- Includes rotating bezel
- Rack gear is machine ground for tighter fit, increased accuracy
- Greater rigidity in the bearing plate reduces retracing error by up to 20%
- Four-screw mounting increases impact resistance for better, longer accuracy
- No through screw hole on the frame provides better dust resistance
- Contact point is carbide tipped for lasting accuracy, durability
- The crystal has a scratch and glare-resistant coating for clearer readings and better durability
- Manufactured to meet ANSI/AGD standards
- The absence of a through screw hole helps protect the indicator against water and oil permeation
- The outer clamp and optional lifting lever can be attached to either side and can be easily installed or removed without the use of tools
Mitutoyo 3416A Specifications
| Range | 0 to 1" |
| Units | Inches |
| Stem Diameter | ?" |
| Thread Type | 4 to 48 UNF |
| Graduation | 0001" |
| Range Revolution | 0.1" |
| Dial Reading | 0 to 100± |
| Back Type | Lug back |
| Accuracy | ±0.002" Revolution: ±0.001" |
| Measuring Force | 1.8 N or less |
| ANSI/AGD Type | Yes |
What's included with the Mitutoyo 3416A
- Mitutoyo 3416A Series 3 Large Face Dial Indicator, 0 to 1", imperial
0 Reviews Hide Reviews Show Reviews
Mitutoyo
Mitutoyo 3416AB,".001-1INC2
$179.10
DescriptionThis is a standard, inch dial indicator. It offers you the following benefits:Large-diameter dial face ? = 78 mm for easy readingSupplied with limit markers and a bezel...
Mitutoyo
Mitutoyo 2416A,".001-1INC2
$122.85
Description
This is a standard, inch dial indicator. It offers you the following benefits:
Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be...
Mitutoyo

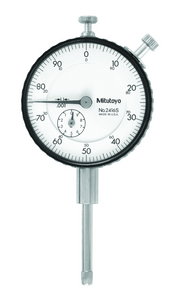

Mitutoyo 2416AB,".001-1INC2
