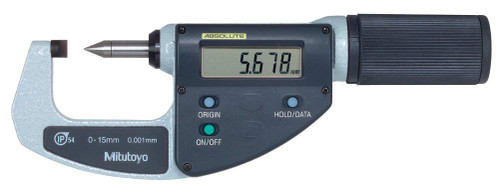

Mitutoyo Crimp Height Type Digital Quickmike Type Micrometer, 0-15mm - 342-451
- IP54/65 water/dust protection(Series 342)
- Measures the height of crimp contacts
- With Ratchet Stop for constant force
- With SPC output(Series 342)
- Supplied in fitted plastic case
Technical Data:
Accuracy: Refer to the list of specifications. (excluding quantizing error for digital models)
Resolution: 0.001mm or .00005"/0.001mm
Display: LCD
Battery: SR44 (1 pc.), 938882
Battery life: Approx. 1.2 years under normal use (3 years: Quickmike type)
Dust/Water protection level: IP65
Function of Digital Model: Origin-set, Zero-setting, Data hold, Data output, inch/mm conversion (inch/mm models)
Alarm: Low voltage, Counting value composition error
Optional Accessories for Digital Model:
- 05CZA662: SPC cable with data switch (1m / 40")
- 05CZA663: SPC cable with data switch (2m / 80")
- 937387: SPC cable for Quickmike type (1m / 40")
- 965013: SPC cable for Quickmike type (2m / 80")
