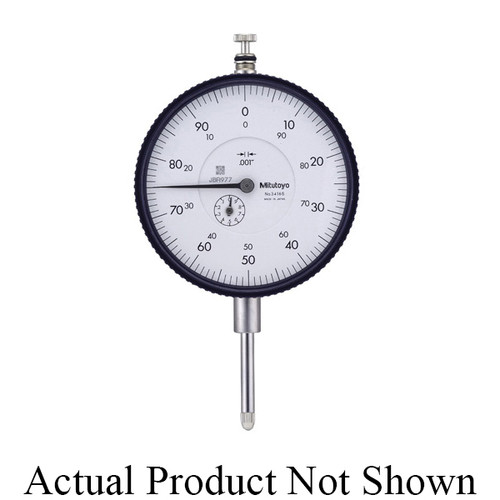

Mitutoyo 3428SB-19 DIAL INDICATOR, .001-4"
$248.00
- Brand
- Mitutoyo
- SKU:
- 3428SB-19
- Availability:
- DISCONTINUED, SEE 3428AB-19
Description
This is a standard, inch dial indicator. It offers you the following benefits:
- Large-diameter dial face ø = 78 mm for easy reading
- Supplied with limit markers and a bezel clamp as standard
- 0,001" / 0,0001" graduation
Specification
| Digital/Analog: | Analog |
| Inch-Metric: | Inch |
| Range: | 4" |
| Range per rev.: | 0.1" |
| Scale: | 0-100 (100-0) |
| Accuracy: | ±0,002" |
| Error of indication one revolution: | ±0,002" |
| Type: | ANSI/AGD Standard |
| Stem: | 9.52 mm / 0.375" |
| Contact point: | Carbide tipped, thread: 4-48UNF |
| Delivered: | with certificate of inspection, limit indicators |
| Mass: | 351 |
| Continuous dial: | Yes |
| Coaxial revolution counter: | Yes |
| Shockproof: | Yes |
| Functions: | ANSI/AGD type |
