Description

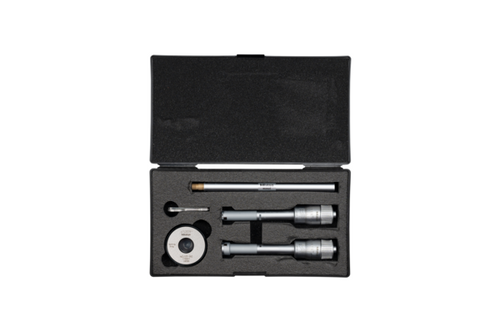

A non-digital Mitutoyo bore gauge. Hardened steel contact faces. A ratchet stop guarantees repeatable measurement.
Specification
| Range: |
20 - 25
|
| Graduation: |
0,005 mm
|
| Maximum Permissible Error J MPE: |
?3 ?m
|
| Scale: |
Thimble and sleeve satin chrome finish, |
| Measuring spindle: |
Spindle pitch 0,5 mm
|
| Measuring face: |
hardened steel
Taper: hardened steel |
| Measuring method: |
3-point
|
| Delivered: |
Including box, key, certificate of inspection |
| Digital/Analog: |
Analog
|
| Mass: |
260
|
| Inch-Metric: |
Metric
|
