Description

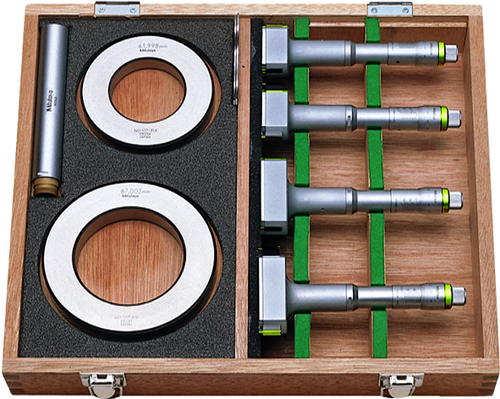

This is a set of three-point and two-point internal micrometers that offers you the followingbenefits:
- Complete unit set.
- Carbide measuring surface (2-6 mm range)
- Titanium-coated measuring pins (> 6 mm range) give you excellent durability and impact resistance.
- Delivered with setting rings
Specification
| Range: | 50 - 100 |
| Graduation: | 0,005 mm |
| Individual ranges: | 50-63, 62-75, 75-88, 87-100 mm |
| Scale: | Thimble and sleeve satin chrome finish, |
| Measuring spindle: | Spindle pitch 0,5 mm |
| Measuring face: | Titanium coated tungsten carbide taper: tungsten carbide |
| Measuring method: | 3-point |
| Models included: | 368-170 / 368-171 / 368-172 / 368-173 |
| Setting rings included: | ?62 mm (177-314) ?87 mm (177-318) |
| Delivered: | Including box, key, setting ring, extension rod, certificate of inspection (measuring instruments only) |
| Digital/Analog: | Analog |
| Mass: | 2030 |
| Inch-Metric: | Metric |
