Description
A non-digital Mitutoyo bore gauge set comprising individual gauges to cover the measuring range, the appropriate setting rings, and an extension tube for deep-measuring applications. Hardened steel contact faces. A ratchet stop guarantees repeatable measurement.Specification
| Range: | 50 - 100 |
| Graduation: | 0,005 mm |
| Individual ranges: | 50-63, 62-75, 75-88, 87-100 mm |
| Scale: | Thimble and sleeve satin chrome finish, |
| Measuring spindle: | Spindle pitch 0,5 mm |
| Measuring face: | Hardened steel taper: hardened steel |
| Measuring method: | 3-point |
| Models included: | 368-770 / 368-771 / 368-772 / 368-773 |
| Setting rings included: | ?62 mm (177-314) ?87 mm (177-318) |
| Delivered: | Including box, key, setting ring, extension rod, certificate of inspection (measuring instruments only) |
| Digital/Analog: | Analog |
| Mass: | 2020 |
| Inch-Metric: | Metric |
0 Reviews Hide Reviews Show Reviews
Mitutoyo

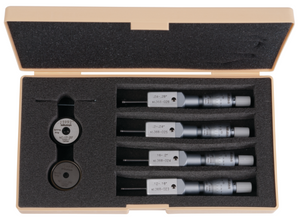

Mitutoyo 368-927 HOLTEST 4PC SET, .12" - .28"
