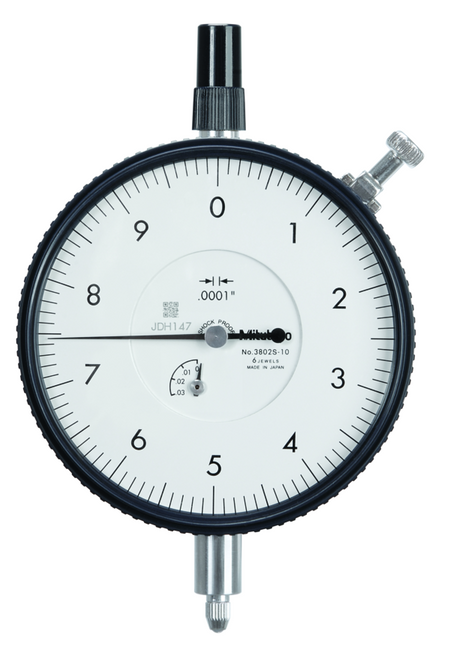

Description
This is a standard, inch dial indicator. It offers you the following benefits:- Large-diameter dial face ? = 78 mm for easy reading
- Supplied with limit markers and a bezel clamp as standard
- 0,001" / 0,0001" graduation
Features
| Digital/Analog: | Analog |
| Inch-Metric: | Inch |
| Range: | 0,025" Inch |
| Range per rev.: | 0.01" |
| Scale: | 0-10 |
| Accuracy: | ?0,0001" |
| Error of indication one revolution: | ?0,0001" |
| Measuring force: | 0,4-2 N |
| Type: | ANSI/AGD Standard |
| Stem: | 9.52 mm / 0.375" |
| Contact point: | Carbide tipped, thread: 4-48UNF |
| Delivered: | With certificate of inspection |
| Mass: | 260 g |
| Continuous dial: | Yes |
| Shockproof: | Yes |
| Functions: | ANSI/AGD type |
