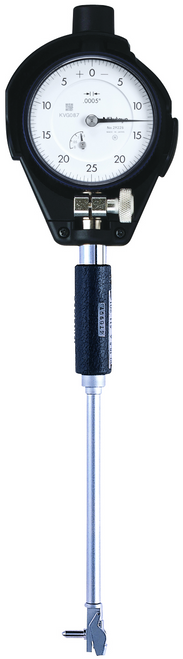

Mitutoyo 511-207-20,"BORE GAGE CG-S.7/2922AB IN
(No reviews yet)
Write a Review
Write a Review
Mitutoyo
Mitutoyo 511-207-20,"BORE GAGE CG-S.7/2922AB IN
$645.30
- Brand
- Mitutoyo
- SKU:
- 511-207-20
- Availability:
- In Stock
Description
These are bore gauges that automatically self-centre via a centring bridge.They offer you the following benefits:
- A long plunger stroke gives you amazing accuracy.
- Interchangeable washers 0.5mm thick are supplied as standard accessories, so you can enable setting in small steps.
- Contact points are carbide (>18 mm range), giving you high durability and wear resistance.
- A large grip reduces heat transfer from the operator by 50%.
Features
| Range: | 0.4 - 0.74 Inch |
| Graduation: | 0.0005" |
| Stroke of contact point: | 0.6 mm |
| Accuracy: | 5 ?m |
| Accuracy: | 5 ?m |
| Repeatability: | 2 ?m |
| Number of anvils: | 9 |
| Measuring depth: | 4" |
| No. Dial Indicator: | 2922SB |
| Delivered: | Including box, dial indicator, plastic cover for indicator |
| Digital/Analog: | Analog |
| Mass: | 252 g |
| Inch-Metric: | Inch |
