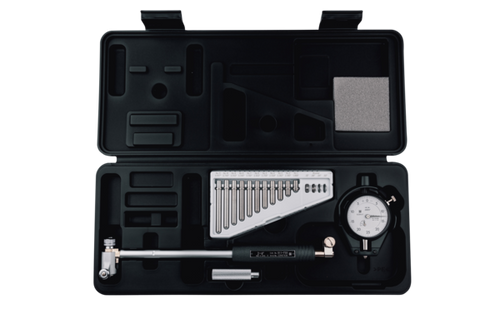

Mitutoyo 511-743-20,"BORE GAGE CG-6"AX/2922AB
(No reviews yet)
Write a Review
Write a Review
Mitutoyo
Mitutoyo 511-743-20,"BORE GAGE CG-6"AX/2922AB
$402.30
- Brand
- Mitutoyo
- SKU:
- 511-743-20
- Availability:
- In Stock
Description
This is a short range application Bore Gauge Set that automatically self-centres via a centring bridge and offers you the following benefits:- It reduces the influence of heat from the operator's hand by 50% by making the grip hollow structured, thereby retaining high accuracy measurement.
- Interchangeable washers (0,5 mm thick) are supplied as standard accessories, so you can enable setting in small steps.
- Contact points are carbide (>18 mm range), giving you high durability and wear resistance.
Properties
| Inch-Metric: | Inch |
| Range: | 2 - 6 " |
| Graduation: | 0.0005" |
| Stroke of contact point: | 18 - 60 mm: 1.2 mm 50 - 400 mm: 1.6 mm |
| Measuring depth: | 6" |
| No. Dial Indicator: | 2922AB |
| Number of anvils: | 11 |
| Mass: | 420 g |
| Accuracy: | 2 ?m |
| Repeatability: | 0,5 ?m |
| Delivered: | Including box, dial indicator, plastic cover for indicator |
| Digital/Analog: | Analog |
