Mitutoyo 513-444-10A DIAL TI, MID SET, TILTED, 1.6 MM
(No reviews yet)
Write a Review
Write a Review
Mitutoyo
Mitutoyo 513-444-10A DIAL TI, MID SET, TILTED, 1.6 MM
$183.60
- Brand
- Mitutoyo
- SKU:
- 513-444-10A
Description
This is a Dial Test Indicator (Lever Type) which offers you the following benefits:- Drastically enhanced durability, sensitivity and visibility.
- Glare-free flat crystal face allows easy reading of graduations.
- O-ring seal on the bezel has the effect of providing smooth rotation and prevents dust and oil from penetrating through to the dial face.
- The stylus length is on the dial face to reorder a replacement
- Multi-layer coatings on the crystal.
Specification
| Digital/Analog: | Analog |
| Inch-Metric: | Metric |
| Range: | 1.6 |
| Graduation: | 0.01 |
| Scale: | 0-40-0 |
| MPE any 10 scale divisions: | 5 |
| MPE any 1/2 revolution: | 8 |
| MPE any 1 revolution: | 10 |
| MPE measuring range: | 16 |
| H MPE (Hysteresis): | 4 |
| R MPE (Repeatability): | 3 |
| Measuring force: | 0,01-0,3 |
| Contact point: | Thread M 1.7 x 0.35 |
| Delivered: | In a box with stem ?8/4 mm, stylus ?1/2/3 mm |
| Mass: | 48 |
| D ?: | 40 |
| L1: | 20.9 |
| L2 [mm]: | 17,4 |
| Functions: | Plus set |
0 Reviews Hide Reviews Show Reviews
Mitutoyo
Mitutoyo 513-444-10H DIAL TI, TILTED, 1.6 MM, 0.01 MM
$180.00
Mitutoyo 513-444-10H OffersFeatures
Using universal fonts, changing dial face color and reviewing the relationship between pointer and scale marks have drastically improved visibility
Glare-free...
Mitutoyo
Mitutoyo 513-444-10E DIAL TI, BASIC SET, TILTED, 1.6
$203.40
DescriptionThis is a Dial Test Indicator (Lever Type) which offers you the following benefits:Drastically enhanced durability, sensitivity and visibility.Glare-free flat crystal face allows easy...
Mitutoyo
Mitutoyo 513-445-10A DIAL TI, MID SET, TILTED, 0.4 MM
$205.20
DescriptionThis is a Dial Test Indicator (Lever Type) which offers you the following benefits:Drastically enhanced durability, sensitivity and visibility.Glare-free flat crystal face allows easy...
Mitutoyo

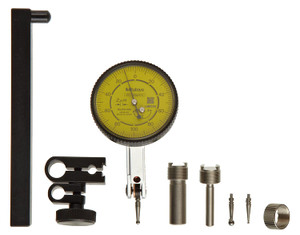

Mitutoyo 513-444-10T DIAL TI, FULL SET, TILTED, 1.6 M
