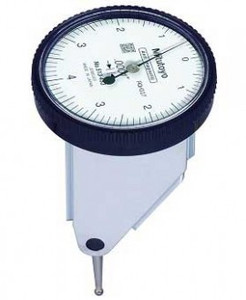

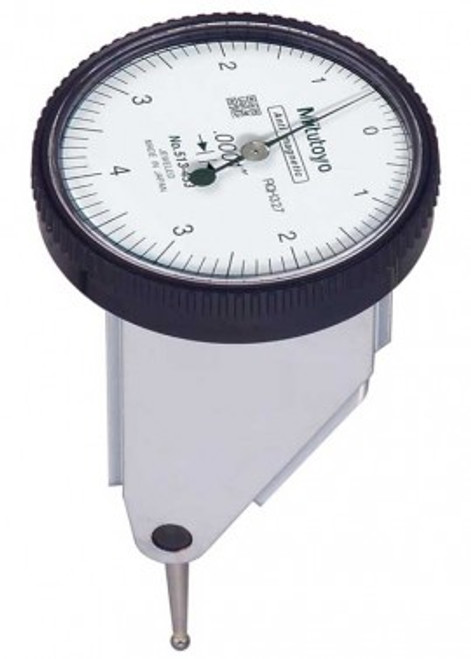

Mitutoyo 513-453-10E Vertical Dial Test Indicator, Basic Set, 0.008" Range

Description

A Mitutoyo versatile anti-magnetic type lever indicator (or dial test indicator, DTI) suited to alignment operations on machine tools and similar applications. This indicator automatically adapts to the required measuring direction on contact, and the jewelled movement provides lowest friction and stiction for smooth and precise operation. Supplied with a basic set of mounting accessories.

Specification

Digital/Analog:	Analog
Inch-Metric:	Inch
Graduation:	0.002
Scale:	0-4-0
Accuracy:	?0.0001"
Error of indication one revolution:	?0.0001"
H MPE (Hysteresis):	0,0001"
R MPE (Repeatability):	?0,00004"
Contact point:	Thread M 1.7 x 0.35
Delivered:	In a box with stem ?3/8", stylus ?0.079"
Mass:	50
L1:	19
L2 [mm]:	15.5
Functions:	Basic set
