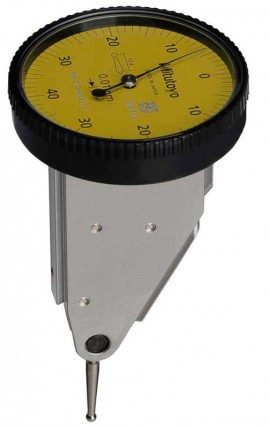

Mitutoyo 513-454-10E Vertical Dial Test Indicator, Basic Set, 0.8mm Range

Description

A Mitutoyo versatile anti-magnetic type lever indicator (or dial test indicator, DTI) suited to alignment operations on machine tools and similar applications. This indicator automatically adapts to the required measuring direction on contact, and the jewelled movement provides lowest friction and stiction for smooth and precise operation. Supplied with a basic set of mounting accessories.

Specification

Digital/Analog:	Analog
Inch-Metric:	Metric
Range:	0,8
Graduation:	0.01
Scale:	0-40-0
MPE any 10 scale divisions:	5
MPE any 1/2 revolution:	6
MPE measuring range:	8
H MPE (Hysteresis):	3
R MPE (Repeatability):	3
Carbide stylus tip ?2 mm No.:	103006
Contact point:	Thread M 1.7 x 0.35
Delivered:	In a box with stem ?8 mm, stylus ?2 mm
Mass:	46
D ?:	40
L1:	20.9
L2 [mm]:	17,4
Functions:	Basic set
