Mitutoyo 513-454-10T Vertical Dial Test Indicator, Full Set, 0.8mm Range
$190.80
- Brand
- Mitutoyo
- SKU:
- 513-454-10T
Description

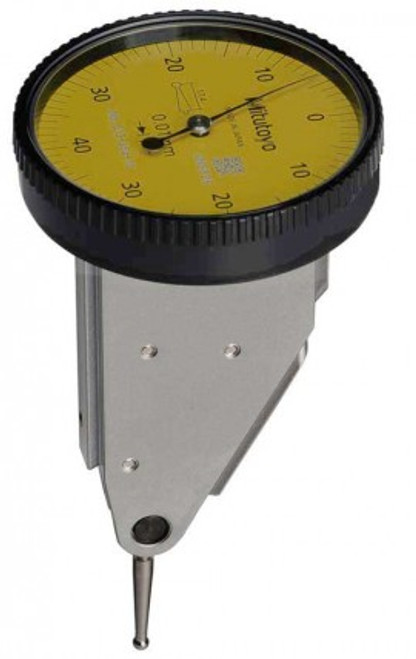

A Mitutoyo versatile anti-magnetic type lever indicator (or dial test indicator, DTI) suited to alignment operations on machine tools and similar applications. This indicator automatically adapts to the required measuring direction on contact, and the jewelled movement provides lowest friction and stiction for smooth and precise operation. Supplied with a comprehensive set of mounting accessories and interchangeable styli that enable immediate use in almost any situation.Specification
Digital/Analog: | Analog |
Inch-Metric: | Metric |
Range: | 0,8 |
Graduation: | 0.01 |
Scale: | 0-40-0 |
MPE any 10 scale divisions: | 5 |
MPE any 1/2 revolution: | 6 |
MPE measuring range: | 8 |
H MPE (Hysteresis): | 3 |
R MPE (Repeatability): | 3 |
Carbide stylus tip ?2 mm No.: | 103006 |
Contact point: | Thread M 1.7 x 0.35 |
Delivered: | In a box with stem ?8/4 mm, stylus ?1/2/3 mm, swivel clamp and holding bar |
Mass: | 46 |
D ?: | 40 |
L1: | 20.9 |
L2 [mm]: | 17,4 |
Functions: | Full set |
