Mitutoyo 513-512-10T Offers

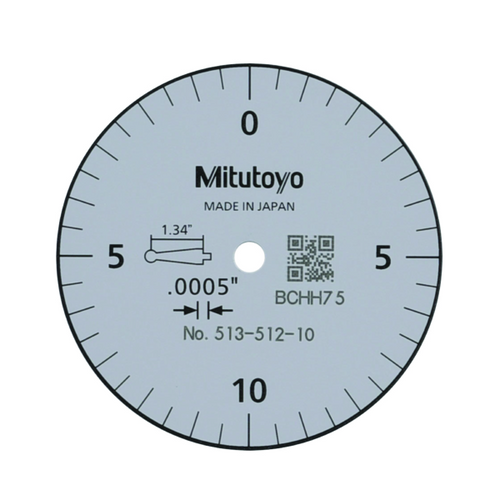

?Complete your setup with the Mitutoyo 513-512T Series 513 Pocket Full Dial Test Indicator Set, which includes an adjustable dial indicator and 2 holding bars. Readouts are precise thanks to jeweled bearings that create a highly sensitive design, and the direction of measurement is reversible to suit your needs. Thanks to the O-ring seal, you can worry less about oil and moisture clouding your view of the face.
Features
- Measures in 0.0005" increments
- Jeweled bearings create an accurate, highly sensitive design
- O-ring seals out water and oil for a crisp, clear view of the face
- Reversible measuring direction suits versatile applications
- Bezel/dial face is fully adjustable
- Contact point is adjustable within 220°
- Full set comes with 2 holding bars
- Measuring force: 0.03 N or less
Mitutoyo 513-512-10T Specifications
?| Supported Measurement Unit(s) | in |
| Measurement Range | 0.02" |
| Accuracy | 0.0005" |
| Dial Reading | 0 to 10 to 0 |
| Dial Color | White |
| Graduation Measurements | Inches |
What's included with the Mitutoyo 513-512-10T
- Mitutoyo 513-512-10T Series 513 Pocket Full Dial Test Indicator Set, 0.02", SAE
