Description

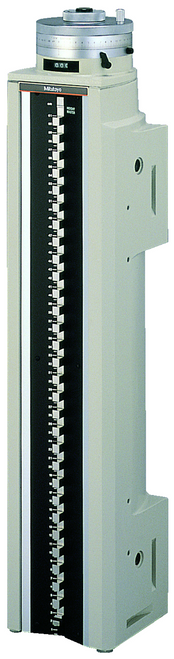

A Mitutoyo calibration fixture designed to check the positioning accuracy of machine tools and the measuring accuracy of coordinate measuring machines. Consists of a stack of permanently wrung steel gauge blocks housed in a rigid frame.Specification
| Range: | 0 - 450 |
| Block step: | 10 mm straight |
| Block pitch accuracy: | Range ? 310 mm: ±2,5 µm 310 < range ? 610 mm: ±3,5 µm 610 < range ? 1010 mm: ±5,0 µm 1010 < range ? 1510 mm: ±8,0 µm |
| Parallelism of blocks: | Range ? 310 mm: 1,2 µm 310 < range ? 610 mm: 1,5 µm 610 < range ? 1010 mm: 2,0 µm 1010 < range ? 1510 mm: 2,5 µm |
| Hardness: | > 64 HRC |
| Inch-Metric: | Metric |
| Delivered: | In a wooden case with certificate of inspection |
| Mass: | 10.0 |
