Description

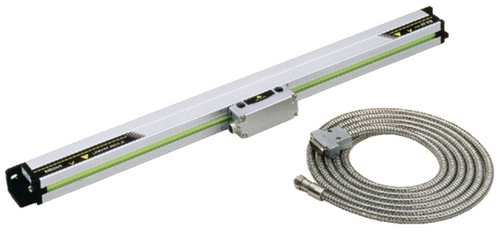

These linear scales offer : Sturdy construction-high resistance to vibration-protection rating are similar in upright and reclining position- The innovative rubber lips keep out contaminants when you are using the scale in a machine shop.
- An armoured signal cable is used to connect the scale unit to the DRO counter, so you can operate it safely even in harsh environments.
- The signal cable outlet can be positioned on either side of the slider so you can connect the signal cable from either direction.
Specification
Accuracy: | (3+3L/1000) µm L = Effective range (mm) |
Output waveform: | Two 90° phase-shifted sinusoidal signals |
Max. drive speed: | up to 120 m/min. |
Signal period: | 20 |
Scale reference points: | 50 mm |
Dust/water protection level: | IP53 |
Cable length: | 5 |
Effective range: | 1,400 mm |
Mass: | 4.6 |
