Description

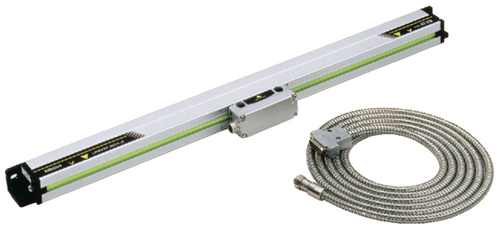

These linear scales offer : Sturdy construction-high resistance to vibration-protection rating are similar in upright and reclining position- The innovative rubber lips keep out contaminants when you are using the scale in a machine shop.
- An armoured signal cable is used to connect the scale unit to the DRO counter, so you can operate it safely even in hostile environments.
- The signal cable outlet can be positioned on either side of the slider so you can connect the signal cable from either direction.
Specifications
| Accuracy: | (5+5L?/1000) ?m |
| Output waveform: | Two 90? phase-shifted sinusoidal signals |
| Max. drive speed: | 120 m/min. |
| Signal period: | 20 ?m |
| Scale reference points: | every 50 mm |
| Dust/water protection level: | IP53 |
| Cable length: | 7 m |
| Effective range: | 3,000 mm |
| Mass: | 8.3 kg |
