Description
These linear scales are built for limited installation space- Glass scale - Zero not coded
- Expansion factor (8 ± 1)x 10-6/K-1
- An armoured inox signal cable is used to connect the DRO counter
Specification
| Accuracy: | High-accuracy type (3+3L/1000) µm L = Effective range (mm) |
| Output waveform: | Two 90° phase-shifted sinusoidal signals |
| Max. drive speed: | 120 m/min |
| Signal period: | 20 |
| Scale reference points: | 50 mm |
| Dust/water protection level: | IP53 |
| Cable length: | 5 |
| Effective range: | 1,400 mm |
| Mass: | 2.2 |
0 Reviews Hide Reviews Show Reviews
Mitutoyo
Mitutoyo 539-221-30 AT113, 1400MM
$1,818.00
DescriptionThese linear scales are built for limited installation spaceGlass scale - Zero not codedExpansion factor (8 ? 1)x 10-6/K-1An armoured inox signal cable is used to connect the DRO...
Mitutoyo
Mitutoyo 539-207-40 AT113-400F
$954.00
DescriptionThese linear scales are built for limited installation space Glass scale - Zero not codedExpansion factor (8 ± 1)x 10-6/K-1An armoured inox signal cable is used to connect the DRO...
Mitutoyo

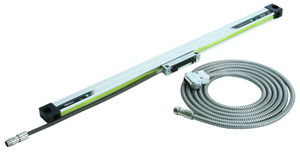

Mitutoyo 539-208-40 AT113-450F
