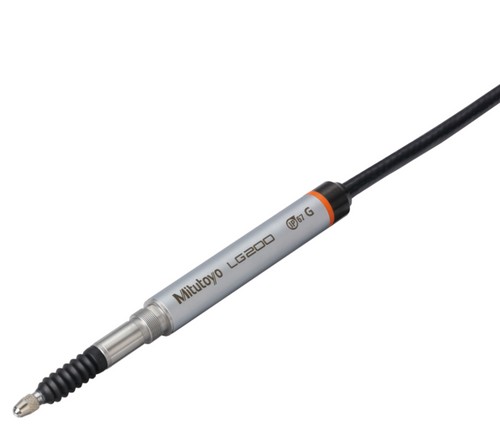

Mitutoyo 542-186,"LG200-110, RANGE: .4"/10MM, RES: .00005"/1?m

(No reviews yet) Write a Review

$709.00

Current Stock:

Quantity:

Adding to cart… The item has been added

Description

This slim type linear gauge allows you to meet a variety of measurement needs.

Differential square wave signal output enables use for a wide range of applications
Due to its compact design, you can install it even where space is restricted
Its photoelectric scale delivers high precision across the entire measuring range
Extremely long-lasting due to linear ball-bearings in the spindle unit
Perfect for use in tough environments, they come with a high IP class of IP67G
Ideal for in-line measurement and embedded in automatic machines

Range:	0 - 10 mm
Accuracy:	(1,5 + L/50) ?m L=measured length in mm
Measuring force:	0.8 N with spindle down, 0.75 N spindle horizontal, 0.7 N spindle upwards
Resolution:	0,001 mm
Scale:	Photoelectric linear encoder
Stem ?:	8 mm
Contact point:	? 3 mm carbide ball, thread: M 2.5 x 0.45
Signal pitch:	4 ?m
Cable length:	2 m
Power supply:	5 V (4.5 V to 5.2 V), 80 mA max.
Max. response speed:	1500 mm/s
Output signal:	90? phase difference, differential square wave (RS-422A equivalent) minimum edge distance 500 ns (0.1 ?m type), 250 ns (0.1 and 0.5 ?m type)
Environmental conditions:	0? C to 50? C (20% to 80% rel. humidity, no condensation) ?C
Bearing type:	Linear ball bearing
