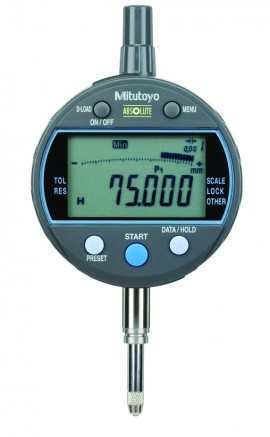

Mitutoyo 543-310B Digital Indicator Bore Gauge ID-C

(No reviews yet) Write a Review

$478.80

Current Stock:

Quantity:

Adding to cart… The item has been added

Description

This indicator is designed for inside diameter measurement applications on bore gauges

It offers the following benefits:

Minimum value holding function that allows you to easily detect a hole diameter
Analogue bar graph in the display (12 different scales switchable)
The analogue bar graph enhances usability by adding a dial gauge feel to digital measurement
GO/±NG tolerance judgement function
A fast measurement frequency mode(detection cycle 20ms or 50times/s) is selectable to measure in the peak detection mode more reliably
Easy indicator setup via a setup menu
A USB interface box can be used to set up the indicator from PC via dedicated software

DATA/HOLD:	Yes
PRESET 3x:	Yes
MIN Value Hold:	Yes
Digital/Analog:	Digital
Inch-Metric:	Metric
Range:	12,7 mm
Digital step:	0,001/0,01 mm
Max. Permissible Error E MPE:	0,003 mm
Hysteresis:	0,002 mm
H MPE (Hysteresis):	0,002 mm
R MPE (Repeatability):	0,002 mm
Digimatic data output:	Yes
Measuring force:	? 1,5
Type:	EN ISO Standard
Protection:	IP42
Display:	LCD, character height: 8 mm, rotatable 330°
Max. response speed:	Unlimited
Measurement frequency (MAX/MIN/RANGE):	Standard mode: 10 times/s fast mode: 50 times/s (plunger speed max. 50 µm/s for peak measurement)
Alarm:	Low voltage composition error, overflow error, tolerance limit setting error
Stem Ø:	8 mm
Contact point:	Carbide ball, thread M 2.5 x 0.45 mm
Power supply:	1 battery CR-2032
Battery life:	Standard mode: approx. 1 year fast mode: approx. 4.5 month
Delivered:	Including 1 battery
ON/OFF:	Yes
Function lock:	Yes
GO/±NG judgement:	Yes
Fast measurement mode:	yes
