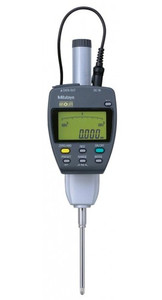

Mitutoyo 543-558A ID-F (IN/MM), 0-2" 120V AC

Mitutoyo ID-F150HE Description

Ideal for measuring linear distances for applications in almost every industry, this digital indicator provides precise readings on an easy-to-read LED display and offers a long battery life. Features a backlit, easy-to-read LCD screen that changes from green to red when user-defined tolerances are exceeded, allowing Go/No-Go judgments to be faster and easier without sacrificing accuracy or reliability. Additionally, an integrated analog bar indicator handles upper and lower limit approaching and zero approaching.

Features

• SPC output capabilities - allows for easier, faster data management in real time
• Go/No-Go judgements are performed by setting the upper and lower tolerances; screen turns from green to red when a tolerance is exceeded
• ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on
• Origin reset is not required even when data is re-displayed after disappearance due to insufficient illumination during use
• Functions include: Origin set/preset, zero-set, Go/No-Go judgement, maximum/minimum value hold, analog bar, runout measurement, resolution switching, counting direction switching, power On/Off, data output and inch/mm conversion
• Alarm: Low voltage, counting value composition error, over-flow error and tolerance limit setting error
• Unlimited response speed eliminates over-speed errors
• An integrated analog bar indicator handles upper and lower limit approaching and zero approaching
• Choice of two power sources: AC or 9 V battery
• Sealed housing meets IP30 rating for dust and water protection

Mitutoyo ID-F150HE Specifications

Applications

• General manufacturing
• Aerospace
• Automotive
• Defense
• Electronics
• Energy
• Plastics and rubber
