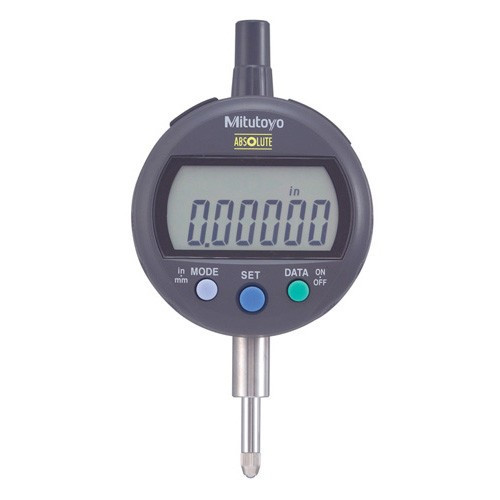

Mitutoyo 543-702 DIGIMATIC INDICATOR, ID-C112EX

.5 In/12.7mm, .00005 In/.0005 In/.0001 In/0.001mm/0.01mm, ID-C ABSOLUTE Digimatic Indicator, 3/8 In stem, Lug Back, With SPC Data Output, ANSI Large, easy-to-read LCD. GO/+/-NG judgement is performed by setting the upper and lower tolerances for max., min. and runout values. Internal calculations using the simple formula of [F(x)=Ax)] are available. FULL SPECIFICATIONS ACCURACY INCH.0001 In ACCURACY INCH.0001 In BACK TYPELug MITUTOYO CATALOG PAGE NUMBERF-6 SPC CABLE 40905338 SPC CABLE 80905409 INDIVIDUAL OR SETIndividual IP RATINGIP42 MECHANICAL OR DIGITALDigimatic MEASURING FORCE>=1.5N OUTPUTY PRIMARY MEASURING RANGE LOWER INCH0 In PRIMARY MEASURING RANGE LOWER MM0mm PRIMARY MEASURING RANGE UPPER INCH.5 In PRIMARY MEASURING RANGE UPPER MM12.7mm PRODUCT MANUAL99MAH001B Series 543 IDF Digi Ind PRIMARY (OD) CONTACT POINT MATERIALHardened Steel PRODUCT MANUAL99MAH001B Series 543 IDF Digi Ind CATEGORY IDPrecision Measuring Tools GROUP IDDigimatic Indicators Product TypeIndicator RANGE0 - .5 In/0 - 12.7mm RANGE STEPNA RESOLUTION OR GRADUATION INCH.0005 In; .0001 In; .00005 In RESOLUTION OR GRADUATION MM0.01mm; 0.001mm SHIPPING HEIGHT INCH3 SHIPPING LENGTH INCH8 STEM DIAMETER3/8 In SHIPPING WEIGHT LBS1 SHIPPING WIDTH INCH4.5 THIRD DRILL DOWNID-C Standard Type US Harmonized Tariff Schedule9031.80.8085
