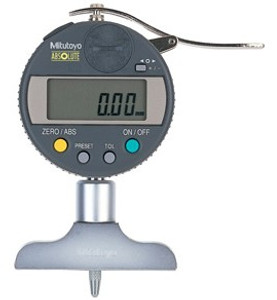

Mitutoyo 547-251A Series 547 ABSOLUTE Digimatic Depth Gauge, 0 to 200 mm, 0.001 mm resolution
(No reviews yet)
Write a Review
Write a Review
Mitutoyo
Mitutoyo 547-251A Series 547 ABSOLUTE Digimatic Depth Gauge, 0 to 200 mm, 0.001 mm resolution
$672.75
- Brand
- Mitutoyo
- SKU:
- 547-251A
Description
This ABSOLUTE Digimatic Indicator Depth Gauge offers you the following benefits:
- It is equipped with the ABSOLUTE Digimatic Indicator ID-C.
- It has a hardened, precision ground and micro-lapped reference face on its base.
Specification
| Digital/Analog: |
Digital
|
| Range: |
0 - 200
|
| Stroke: |
12.7
|
| Accuracy: |
± 5 µm
|
| Base flatness: |
2 µm
|
| Lock function: |
Yes
|
| Scale: |
Capacitance type ABSOLUTE linear encoder
|
| PRESET: |
Yes
|
| Alarm: |
Low voltage, counting value composition error, overflow error, tolerance limit setting error
|
| Battery life: |
Approx. 7000 hours
|
| ABS / INC (INC ZERO): |
Yes
|
| DATA (output with cable) / HOLD (display value): |
Yes
|
| Power supply: |
1 battery SR-44
|
| Counting direction switchable: |
Yes
|
| Inch-Metric: |
Metric
|
| Mass: |
290
|
| Digimatic data output: |
Yes
|
| Measuring force: |
? 1.5
|
| Contact point: |
Carbide ball
|
| GO/±NG judgement: |
Yes
|
| Calculation function (with formula): |
Yes
|
| Delivered: |
Including Box and extensions 10, 20, 30 (2 pcs.), 100 mm, contact point 21JAA224
|
0 Reviews Hide Reviews Show Reviews
Mitutoyo
Mitutoyo 547-252 Series 547 ABSOLUTE Digimatic Depth Gauge, 0 to 200 mm, 0.001 mm resolution
$647.90
Description
This ABSOLUTE Digimatic Indicator Depth Gauge offers you the following benefits:
It is equipped with the ABSOLUTE Digimatic Indicator ID-C.
It has a hardened, precision ground and...
Mitutoyo
Mitutoyo 547-212 Series 547 ABSOLUTE Digimatic Depth Gauge, 0 to 200 mm, 0.01 mm resolution
$499.70
DescriptionThis ABSOLUTE Digimatic Indicator Depth Gauge offers you the following benefits:It is equipped with the ABSOLUTE Digimatic Indicator ID-C.It has a hardened, precision ground and...
Mitutoyo
Mitutoyo 547-211 Series 547 ABSOLUTE Digimatic Depth Gauge, 0 to 200 mm, Metric
$494.95
DescriptionThis ABSOLUTE Digimatic Indicator Depth Gauge offers you the following benefits:It is equipped with the ABSOLUTE Digimatic Indicator ID-C.It has a hardened, precision ground and...
Mitutoyo

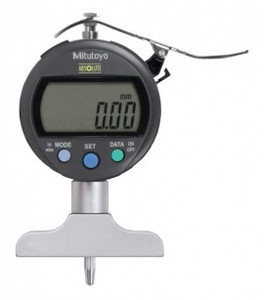

Mitutoyo 547-217S Digimatic Depth Gauge, 0 to 8" (0 to 200 mm)
