Mitutoyo 547-520S Series 547 Digital Flat Anvil Thickness Gauge, 0 to 0.47"
(No reviews yet)
Write a Review
Write a Review
Mitutoyo
Mitutoyo 547-520S Series 547 Digital Flat Anvil Thickness Gauge, 0 to 0.47"
$327.75
- Brand
- Mitutoyo
- SKU:
- 547-520S
Description
This ABSOLUTE Digimatic Thickness Gauge enables you to measure film, paper, etc., with flat contact points.Specification
| DATA/HOLD: | Yes |
| Inch-Metric: | Inch/Metric |
| Digital step: | 0,0005"/0,01 mm |
| Accuracy: | ?0,001" / ?20 ?m |
| Parallelism: | 0,0005" |
| Indicator No.: | 543-400BS (ID-C) |
| Max. measuring depth: | 120 mm |
| Digimatic data output: | Yes |
| Measuring force: | ? 1,5 |
| Max. response speed: | Unlimited |
| Alarm: | Low voltage, counting value composition error, overflow error, tolerance limit setting error (ID-C only) |
| Contact point: | Thread # 4-48UNF |
| Power supply: | 1 battery SR-44 |
| Battery life: | approx. 7000 hours |
| ON/OFF: | Yes |
| ABS / INC (INC ZERO): | Yes |
| PRESET: | Yes |
| Function lock: | Yes |
| GO/?NG judgement: | Yes |
| Calculation function (with formula): | Yes |
| Counting direction switchable: | Yes |
| Functions: | With indicator ID-S No. 543-783BS (ANSI/AGD type) |
0 Reviews Hide Reviews Show Reviews
Mitutoyo
Mitutoyo 547-512S Series 547 Digital Lens Thickness Gauge, 0 to 0.47"
$312.55
Mitutoyo 547-512S Descriptions ?Capable of measuring thicknesses from 0 to 0.47" (0 to 12 mm) with a force of <1.5 N, this Mitutoyo 547-512S...
Mitutoyo
Mitutoyo 547-361S 547 Series Tube Thickness Gauge, 0 to 0.47"
$484.50
Mitutoyo 547-361S Descriptions ?Use this Mitutoyo 547-361S 547 Series Tube Thickness Gauge to take accurate measurements. The gauge is...
Mitutoyo
Mitutoyo 547-516S Digital Thickness Gauge, 0 to 0.47"
$329.65
Mitutoyo 547-516S Descriptions ?For precise measurements, use the Mitutoyo 547-516S Digital Thickness Gauge. It's designed with a blade anvil...
Mitutoyo

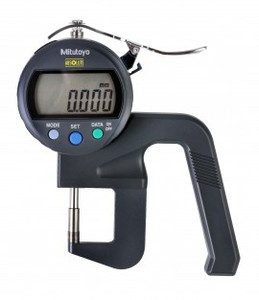

Mitutoyo 547-401 Digital Thickness Gauge, 0 to 12mm
