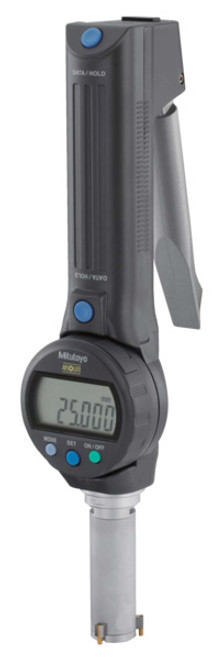

Mitutoyo 568-471 SBM-3"CX

Mitutoyo Borematic Series 568 Absolute Digimatic
Snap-Open Bore Gages

The Borematic enables the operator to take measurements more accurately and more quickly than ever before. Once the origin point is set with the ORIGIN button, the Borematic retains the setting for the entire battery life. Therefore no longer repeated origin setting (presetting) is necessary.

This is a three-point Digimatic snap open bore gauge. The Absolute Borematic offers you the following benefits:

• It enables you to take measurements easily and quickly.
• Titanium-coated measuring pins gives you excellent durability and impact resistance.
• A large LCD display with character height of 11mm makes measurements easy to read.
• 330? rotatable display unit also gives you easy reading at any angle.
• GO/NG tolerance judgement function.
• It has a function lock to protect the setup against unauthorised use.

Features:

• TiN-coated measuring contact points provide excellent durability and impact resistance and allow the instrument to measure right to the bottom of a blind hole.
• Large LCD digits of 8.5mm height for error-free reading.
• 330-degree rotatable display unit for easy reading at any angle.
• GO/NO-GO judgment function.
• The ABSOLUTE linear encoder eliminates the fear of over-speed errors.
• With SPC data output.
• Setting rings for origin point setting are optional.
• Can measure deep holes by attaching an optional extension rod.
• Measurement can be taken closer to the bottom of a blind bore.
• Supplied in fitted wooden case.

Technical Data:

• Accuracy: Refer to the list of specifications below
• Resolution: 0.001mm or .00005"/0.001mm
• Contact point: Carbide or titanium coating* (*over 12mm/.5" models)
• Measuring method: Three-point method
• Display: LCD
• Battery: SR44 (1 pc.) (938882)
• Battery life: Approx. 7,000 hours

Functions:

• Zero-Set, presetting, GO/NO-GO judgment, power on/off, inch/mm conversion (inch/mm type only), SPC data output, data hold

Optional Accessories:

• 905338: SPC cable (1m / 40")
• 905409: SPC cable (2m / 80")
• 952322: Extension rod 100mm / 3.94" For range 6-12mm / .275-.5" models
• 952621: Extension rod 150mm / 5.9" For range 12-20mm / .5" - .8" models
• 952622: Extension rod 150mm / 5.9" For range 20-50mm / .8" - 2" models
• 952623: Extension rod 150mm / 5.9" For range 50-300mm / 2"-12" models
