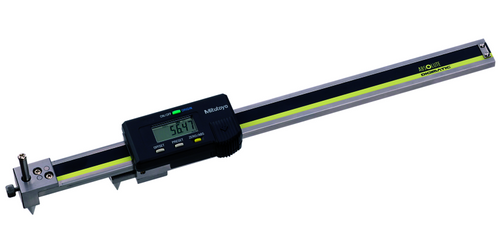

Mitutoyo 573-117-10 BACK-JAW CENTERLINE CALIPER 10-3

Mitutoyo ABSOLUTE Back-Jaw Centerline Caliper Series 573 - Center-to-Center & Edge-to-Center Types

Features

• Specially designed to measure the distance between two centers or the distance from an edge to center.
• Provided with jaws on the back of the slider, measurements can be read easily by looking down.
• Direct reading of pitch measurements is available due to the offset value setting function.
• With SPC data output.
• Supplied fitted in wooden case.

Technical Data

• Accuracy: Refer to the list of specifications. (excluding quantizing error for digital models)

• Resolution: 0.01mm

• Display: LCD

• Length standard*: ABSOLUTE electrostatic capacitance type linear encoder

• Max. Response speed: Unlimited

• Battery: SR44 (1 pc.), 938882

• Battery life: Approx. 3.5 years under normal use

Function

• Origin-set, Zero-setting, Power On/Off, Data output, inch/mm conversion (inch/mm models)

• Alarm: Low voltage, Counting value composition error

Optional Accessories

• 959143: Data hold unit

• 959149: SPC cable with data switch (1m)

• 959150: SPC cable with data switch (2m)
