Mitutoyo 575-121 Offers

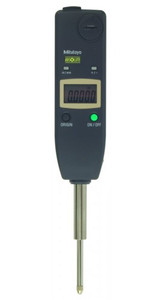

?Designed to keep the spindle in "Absolute Position," the Mitutoyo 575-121 ID-U Series 575 ABSOLUTE Digimatic Indicator features an ABSOLUTE electrostatic capacitance-type linear encoder. The LCD shows the data you need, and its flat-back style means it can sit flush against surfaces.
Features
- Large LCD and easy key operation
- ABSOLUTE linear encoder automatically displays the spindle "Absolute Position" from the origin at power-on
- IP42 protection level against dust and water
- SPC output for data
- Flat-back style for compact spaces
- Unlimited response speed
- Functions includes origin-set, Zeroset, counting direction switching and power
- Features alarms for low voltage, over-flow errors and counting value composition errors
- M2.5 x 0.45 thread
- Measuring force of 1.8 N or less
Mitutoyo 575-121 Specifications
?| Supported Measurement Unit(s) | Metric |
| Measurement Range | 0 to 25.4 mm |
| Accuracy | 0.02 mm |
| Resolution | 0.01 mm |
| Power Source | Battery powered |
| Power Requirements | 1 SR44 battery |
| Battery Type | SR44 |
| Battery Life | 20,000 hours |
| Number Of Batteries Required | 1 |
| Approvals | ISO/JIS |
What's included with the Mitutoyo 575-121
- Mitutoyo 575-121 ID-U Series 575 ABSOLUTE Digimatic Indicator, 0 to 25.4 mm
