Description
The LGS is a compact ABS linear gauge that offers you the following benefits:- Its ABSOLUTE Digimatic data output and IP-66 protection class give you best-of-breed technology.
Features
| Range: | 0 - 12.7 |
| Accuracy: | 15 ?m |
| Measuring force: | 2 N with spindle down, 1.8 N spindle horizontal, 1.6 N spindle upwards |
| Scale: | Capacitance-type ABSOLUTE linear encoder |
| Stem ?: | 8 mm |
| Max. response speed: | 1600 mm/s; (measuring by scanning not possible) mm/s |
| Contact point: | ?3 mm carbide |
| Cable length: | 2 m |
| Power supply: | 5 to 10 V (5 mA max.) |
| Output signal: | Digimatic output |
| Environmental conditions: | 0 ?C to 40 ?C (20 % to 80 % rel. humidity, no condensation) ?C |
| Bearing type: | Slide bearing |
| Direction of counting: | positive |
| Inch-Metric: | Metric |
| Mass: | 190 g (included cable) |
| Digital step: | 0,01 mm |
| Mass: | 190 g |
0 Reviews Hide Reviews Show Reviews
Mitutoyo
Mitutoyo 575-314 LINEAR GAGE LGS-1012PER
$252.70
Mitutoyo 575-314 Offers?The Mitutoyo 575-314 Linear Gauge provides readings for absolute pressure. The IP66 rating offers reliable protection.FeaturesProvides readings for absolute pressureIP66...
Mitutoyo
Mitutoyo 575-313 LINEAR GAGE LGS-1012PE
$252.70
DescriptionThe LGS is a compact ABS linear gauge that offers you the following benefits:Its ABSOLUTE Digimatic data output and IP-66 protection class give you best-of-breed technology.Features ...
Mitutoyo

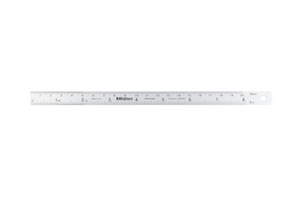

Mitutoyo 182-303 STEEL RULE
