Mitutoyo 905409 SPC CABLE (CD TYPE), 2M|TestEquipmentUSA

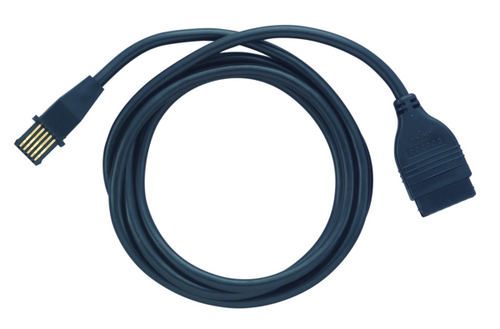

Mitutoyo 905409 SPC CABLE (CD TYPE), 2M

(No reviews yet) Write a Review

$57.00

Brand

SKU:

905409

Availability:

In Stock

The constant current DC load bank has a parallel connection of two units for increased discharge capacity.

Features

SMART Constant Current DC Load Banks with system and cell/unit voltage monitoring
Data management software included for data analyzing with exporting to Microsoft Excel for report generation
Four settings for auto shut-down of discharge: discharge time, total string end voltage, cell end voltage, discharged capacity
Thermal cut-off and automatic overload protection
Optional: Real-time display of voltage for each cell/unit with DAC package for 1.2V, 2V, 6V, 12V cells
Optional: Custom DAC packages available for monitoring of uncommon cell voltages and configurations

Cell Voltage:	Standard DAC: 1.2 V1, 2 V, 6 V, 12 V / Optional: Custom DAC configurations available upon request
Discharge Current Range:	Single Load: 12 to 600 A / Parallel Load: Up to 1200 A
Discharge Voltage Range:	Range: 10 to 576 V (Max) / Voltage Steps: 12 V, 24 V, 36 V, 48 V, 80 V, 125 V, 240 V, 380 V, 480 V
Accuracy:	Discharge Current: 1% / Voltage: 0.5 to 0.8%
Resolution:	Discharge Current: 0.1 A or 0.5% / Voltage: 0.001 V
Sampling Interval:	5 seconds to 1 minute
Data Transfer:	USB, Wireless (466 MHz)
Display:	Backlit LCD
Operating Environment:	32 to 104°F (0 to 40°C)
Power Requirements:	110/220 VAC 50/60 Hz / DC (from connected batteries)
