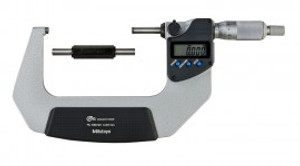

Mitutoyo Series 293 Coolant Proof Micrometer -293-340-30
(No reviews yet)
Write a Review
Write a Review
Mitutoyo
Mitutoyo Series 293 Coolant Proof Micrometer -293-340-30
$203.40
- Brand
- Mitutoyo
- SKU:
- 293-340-30
Description
A Mitutoyo waterproof digital micrometer suitable for use in the presence of coolant or cutting oil. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions. A ratchet stop guarantees repeatable measurement.
Specification
| Inch-Metric: |
Inch/Metric
|
| Range: |
0 - 1
|
| Digital step: |
0,00005"/0,001 mm
|
| Maximum Permissible Error J MPE: |
±0,00005"
|
| Flatness: |
0,000012"
|
| Parallelism: |
0,00004"
|
| Display: |
LCD, character height 7.5 mm
|
| Digital/Analog: |
Digital
|
| Measuring face: |
Carbide-tipped, micro-lap finish
|
| Measuring spindle: |
With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
|
| Scale: |
Thimble and sleeve satin chrome finish, ø18 mm
|
| Measuring force: |
5 - 10
|
| Power supply: |
1 battery SR-44
|
| Battery life: |
Approx. 2,4 years for models ?4"
1,2 years for >4" |
| Battery life: |
Approx. 2,4 years
|
| Delivered: |
Including box, key, 1 battery, setting standard (from 1" upward)
certificate of inspection (0-2" range) |
| Mass: |
270
|
| 2 x PRESET (over 100 mm): |
Yes
|
