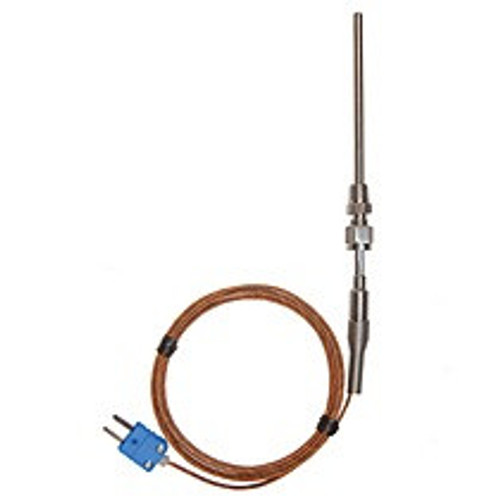

Oakton Instruments WD-08500-71 TC Probe, Pipe Fitting, 4", T fiberglass 5ft cable
$46.50
- SKU:
- WD-08500-71
- Availability:
- In Stock
Oakton Instruments WD-08500-71 TC Probe, Pipe Fitting, 4", T fiberglass 5ft cable Digi-Sense Type-T Thermocouple Probe, Pipe-Fitting, 4 inch L x 0.188 inch Dia, 1/8 inch NPT, Grounded Junction, 24 Ga, 6 feet Insulated Wire Cable, Mini ANSI Connector (each) Thermocouple pipe-fitting probes ideal for high temperature environments or pressurized chambersResponse Time: 3 seconds or greaterEach Probe comes with a one-time adjustable stainless steel compression fitting with a 1/8 NPT processCompression fittings can hold up to 2000 psi once installedFiberglass insulated cable ideal for continuous high temperature environmentsEach probe comes with a color coded ANSI miniconnectors: type T-blueNote: The temperature range is for the probe tip only. Stainless Steel handles are rated at 450°F (232°C); Mini Connectors are rated to 392°F (200°C). [custom1] Product Type:Thermocouple Probe Brand:Digi-Sense Class:Type-T Grade:Pipe-Fitting Temperature Range:-328 to 500°F (-200 to 260°C) Temperature Accuracy:±2.7°F (1.5°C), or ±0.4% of reading above 32°F (0°C); ±0.8% of reading below 32°F (0°C) Material:316 Stainless Steel Connections:Mini ANSI Connector Probe Length:4 inches length x 0.188 inch diameter Cable Length:6 feet Notes:Grounded Junction Unit Size:24 Ga Overall Dimensions:Sheath: 4 inch length x 0.188 inch dia; Handle: 1.5 inch length Additional Specifications and Descriptions Product Type Thermocouple Probe Temperature Range -328 to 500°F (-200 to 260°C) Min Temperature (°F) -328 Max Temperature (°F) 500 Min Temperature (°C) -200 Max Temperature (°C) 260 Temperature Accuracy ±2.7°F (1.5°C), or ±0.4% of reading above 32°F (0°C); ±0.8% of reading below 32°F (0°C) Probe Type T Cable Length (inches) 72 Sheath Material 316 Stainless Steel Handle Material 316 Stainless Steel Sheath Length (inches) 4 Junction Grounded Wire Gauge (Ga) 24 Qty/ea 1 Brand Digi-Sense [/custom1]
