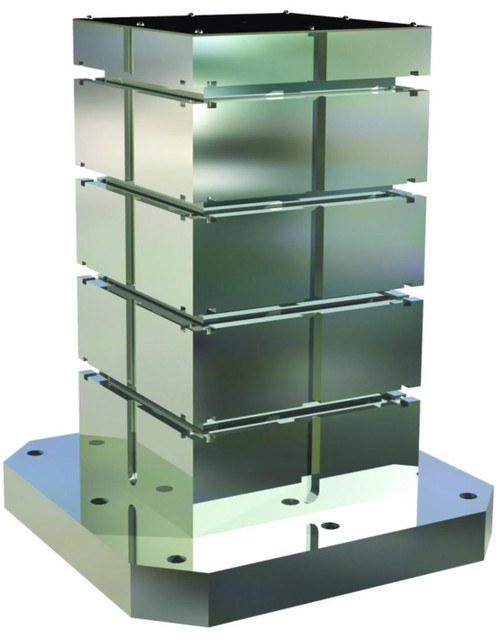

Palmgren 9626653 630 x 630mm Tombstone for 6" Jaw Width 9626653

(No reviews yet) Write a Review

$12,077.00

Brand: Palmgren
SKU:: 9626653
UPC:: 7.27E+11
Availability:: In Stock

Current Stock:

Quantity:

Adding to cart… The item has been added

Description
0 Reviews

Description

Palmgrens tooling columns or tombstones provide a practical means of holding work accurately in a vertical or horizontal plane for CNC machining operations. They can be mounted directly on a machine table/pallet and come standard with key-ways running vertically and t-slots running horizontally on all four sides.

FC300 Cast Iron / Heat treated (normalized)
Excellent vibration dampening characteristics
Strong, ridged construction
Designed to fit all inch and metric pallets
Fully machined on all sides
Flat, parallel and square less than .001" over 12"
5/8" t-slots with 11/16" keyway
Easy accepts machining center vises or standardized jig components

Features

General Specifications
Dimensions	24.80 x 24.80 x 27.57 IN
Weight	808 LB
Mounting Screw Size	M16
Surface Datum A Base Flatness	0.001 IN
Face Perpendicular to Base	0.003 IN
Edge Locator Perpendicular	0.0015 IN
Face Dimension	14.00 ± 0.002 IN
Face Locator to Edge Parallelism	0.002 IN
