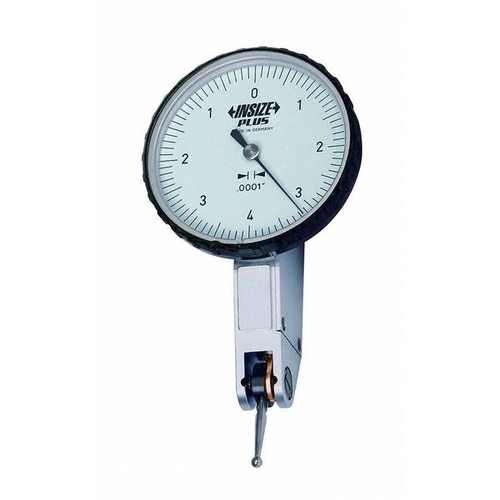

Insize 2834-008 Precision Dial Test Indicator, .008 '', Graduation .0001''

(No reviews yet) Write a Review

$334.05

Brand

INSIZE

SKU:

2834-008

Availability:

In Stock

Description
0 Reviews

Description

Item Horizontal Dial Test Indicator, Range 0 in to 0.008 in, Graduations 0.0001 in, Long Form Calibration Certificate No, Contact Point Dia. 0.079 in, Dial Color White, Dial Reading 0-4-0, Dial Size 1.79 in, Dimension Type Inch, Included Certification Short Form Certificate of Inspection with NIST Traceability, Includes Dovetail Mount Attachments Yes, Maximum Measurement - Inch 0.008 in, Minimum Measurement - Inch 0 in, Number of Indicators 1, Operation Type Lever-Style

Insize 2834-008 Specifications

Graduations: 0.0001 in

Range: 0 in to 0.008 in

Features: Contact Point #4-48 UNF Thread

Accuracy: +/-0.0001 in

Includes: Anti Magnetic Carbide Point, 3/8 in Clamp

Contact Point Style: Carbide

Reading: Balanced

Bearing Type: Ceramic

Series: Insize 2834

Dial Reading: 0-4-0

Bezel Lock: Yes

Standards: Traceable to NIST, AGD, ASME B89.1.10M-2001

Long Form Calibration Certificate: No

AGD No.: AGD 1

Item: Horizontal Dial Test Indicator

Dial Size: 1.79 in

Back Type: Round

Range per Revolution: 0.008 in

Contact Point Dia.: 0.079 in

Dial Color: White

Contact Point Shape: Ball

Dimension Type: Inch

Stylus Length: 0.472 in

Swivel Angle: 120 Degrees

Minimum Measurement - Inch: 0 in

Includes Dovetail Mount Attachments: Yes

Contact Point Material: Carbide

Repeatability: +/-0.0001 in

Stylus Diameter: 0.079 in

Shock Resistant: No

Non-Conductive Tip: Yes

Operation Type: Lever-Style

Included Certification: Short Form Certificate of Inspection with NIST Traceability

Test Indicator Style: Horizontal

Number of Indicators: 1

Includes Case: Yes

Case Type: Case

Mounting Style: Clamp

Maximum Measurement - Inch: 0.008 in

Hysteresis: +/-0.0001 in

Non-Magnetic Tip: Yes

Stem Thread Size: M1.6 x 0.35mm

Product Type: Horizontal Dial Test Indicator

Country of Origin (subject to change): Germany
