Shimpo DT-207LR-S12 LED Display Contact/Non-Contact Tachometer, 12" Circumference Measuring Wheel|Testequipmentusa

Shimpo DT-207LR-S12 LED Display Contact/Non-Contact Tachometer, 12" Circumference Measuring Wheel

(No reviews yet) Write a Review

$360.00

Brand

Shimpo Instruments

SKU:

DT-207LR-S12

Description
0 Reviews

Description

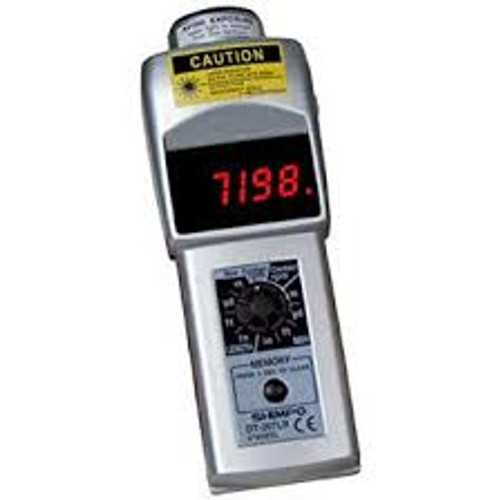

LED Display Contact/Non-Contact Tachometer

Features

Outstanding Accuracy allows usage in the strictest applications
Sophisticated laser beam detection to 20 feet provides operator safety during testing
Exceptionally rugged die-cast aluminum housing enables usage in the harshest conditions
Wide field selection of units in both instantaneous rate as well as totalized length satisfies a multitude of user requirements
Large 5 digit display aids user visibility
10 measurement memory capacity allows quick retrieval of stored data plus additional last, max. & min. values
Long-life battery (25-40 hrs. continuous use) eliminates concerns of being down during testing
Compact, Ergonomic design allows easy ergonomic grip
Rear Threaded Inserts provides option to mount to stand or other device
CE Mark combined with free NIST certificate provides a guarantee of quality performance

The laser-enabled DT-207LR-S12 has precise RPM measurement up to 20 feet. The Series DT-207LR-S12 digital tachometers incorporate laser technology yet retain our hallmark rugged construction and reliable quality components. Units offer incredible value and versatility as they can operate in non-contact and contact applications. These instruments feature a field-upgrade-able contact adapter for linear rate measure, conveniently allowing both non-contact and contact measurements.

Specifications

Display Range	6 99,999 rpm
Accuracy	±1 rpm: 6 -8,300 rpm
	±2 rpm: 8,300 25,000 rpm
	±0.006% of reading ±1 digit (±6 rpm max.) 25,000 99,999 rpm
Display	5 digit 0.4" (10 mm) high LED
Measuring Units	rpm (on contact using adapter, included) for YPM, mPM, FPM, IPM, and Length: YRD, m, FT and IN
Measuring Units	Use wheel with 200L adapter
Measuring Distance	1" (25.4mm) to 20 (6m)
Memory System	13 readings are stored in memory and retained for 5 minutes (last, max., min., and 10 extra measurements)
Detection	Laser diode / contact
Update Time	1 second (typical)
Power Requirement	2 AA 1.5V batteries (Life: Approx. 25 hrs)
Construction	Die-cast aluminum housing
Operating Temperature	32° 113° F (0° 45° C)
Dimensions	6.6" L x 2.4" W x 1.8" H (167.5 mm x 60 mm x 46 mm)
Dimensions	with contact adapter: Length=8.25" (209 mm)
Product Weight	0.8 lb (365 g)
Package Weight	Approx. 2 lb (.91 kg)
Approvals	CE
Warranty	2-Year
Included Accessories	Two AA Batteries, Reflective tape, 2 cone adapters, funnel adapter, 3-1/2 extension shaft, carrying case, NIST certificate, master wheel (12" cir.) & contact adapter
