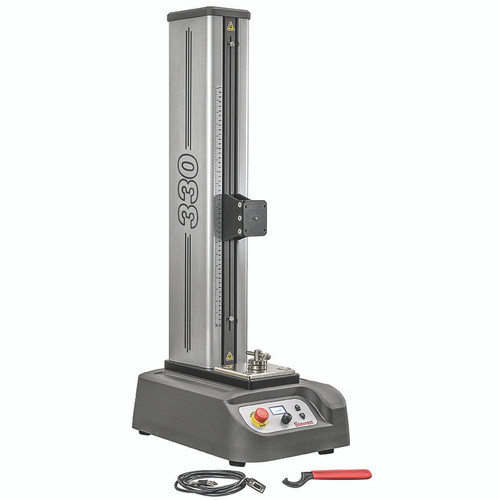

Starrett FMM-330 Test Frame- Digital- 330 lbf- Standard Travel

The Starrett FMM-330 represents our most-basic, computer-based force testing solution. Optimized for production and quality control testing, they are designed to be easy to setup, operate and maintain. L1 Systems can be used to create your test methods quickly using test templates that guide you through the test setup process. Perform a wide variety of testing methods including; load limit, distance, beaking limit, cyclic count, cyclic duration, constant load and constant distance.

Features

• Ideal for tension, compression, flexural, cyclic, shear, and friction applications
• Use with L1 software and 2-in-1 tablet PC or with DFC and DFG force gages
• Multiple, Easy-to-Use Operating Modes; manual, automatic, continuous, gage control, or software control
•  Easily perform load, distance, beak, cyclic, constant load and distance testing
• Reference distance travel ruler
• Compact design is ideal for small work space and for lean manufacturing environments
• Adjustable, magnetic travel limits
• Speed selection dial with high resolution display
• Conforms to All Relevant European Standards and Carries CE Mark

Specifications

• Capacity: 330lbf, 1500N, 150kg
• Crosshead Travel: 20in, 508mm
• Vertical Test Space: 22in, 559mm
• Travel - Position Accuracy: +/-0.001” or 0.1% of displacement whichever is greater
• Travel - Resolution: .001in, .025mm
• Speed - Minimum: .002in/min, .05mm/min
• Speed - Maximum: 40in/min, 1016mm/min
• Speed - Maximum @ Full Capacity: 40in/min, 1016mm/min
• Speed - Accuarcy: Better than 0.1% of test speed
• Cycling - Maximum Number: Counts 99,999
• Cycling - Maximum Duration: 27 hours
• Load Hold - Maximum Duration: 27 hours
• Test Frame Communications: USB 2.0, RS-232
• Input/Output Channels: 0 - 24Vdc (independent, configurable)
• Power: +10% 110, 120, 220, 230, 240, 50/60 Hz
• Electrical Phase: Single Phase Voltage (Vac)
• Operating Temperature: +40 to +110°F, +5 to +43°C
• Humidity: 10 to 90%, non-condensing
• Height: 37in, 940mm
• Depth: 16.5in, 419mm
• Width: 11.5in, 292mm
• Throat Distance: 3.9in, 100mm
• CE Compliant: meets all relevant CE standards for saftey, immunity, noise
