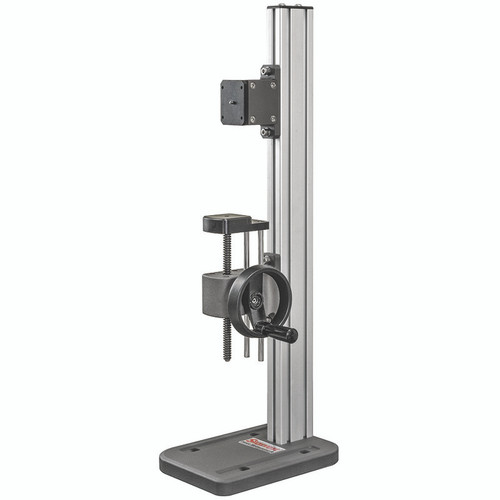

Starrett MTH-550 Test Frame- Manual- Handwheel- 550 lbf

The MTH Manual Tester is a single column, manually-operated force tester. The MTH has a load measurement capacity of 550lbf (2500N, 250kgf) and can be used for compression or tensile testing. The mechanical advantage afforded by the MTH-550's precision, high-resolution worm gear design lets you test effortlessly. One rotation of the hand wheel positions the crosshead 0.03" (0.75mm). Total stroke for the MTH-550 is 4" (102mm). Force measurement is performed using a Starrett digital force gage. The MTH-550 is an ideal, affordable solution for spring testing. Fit the MTH-550 with a digital force gage and optional digital scale to determine spring rates, initial tension and more. The hand wheel may be positioned anywhere along the 30" (762mm) column, and with a 4" (102mm) throat, large samples can be accurately tested.

Features

• Tension or Compression Testing
• Excellent for Cost-Effective Spring Testing
• Effortless Crosshead Movement
• Precision Worm Gear Design
• Excellent Position Resolution: Single Rotation for 0.03" (0.75mm)
• 30" (762mm) Column Height, 15" (380mm) Working Area
• Adjustable Gage Mounting

Specifications

• Made in America: No
• Capacity: 550lbf, 2500N, 250kg
• Crosshead Travel: 4in, 102mm
• Height: 31.44in, 798.5mm
• Depth: 11in, 279.4mm
• Width: 8in, 203.2mm
• Throat Distance: 4in, 102mm
