Testo 0564 3004 92 testo 300 Pro Commercial Analyzer Kit (O2 & CO installed. Field upgradable for NO)
- Brand
- Testo
- SKU:
- 0564 3004 92
- Availability:
- In Stock
Description
Testo, 0564 3004 92, 300 Longlife Combustion Analyzer Commercial Kit with O2 and CO, Range: 0 - 4.000

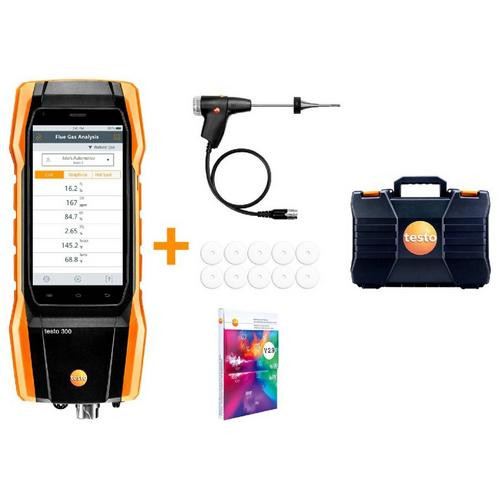

0564 3004 92Includes: Only
- Instrument, including power supply - O2, CO, 4,000 ppm. No sensor - can be retrofitted
- Probe, including 10 spare filters - Compact flue gas probe (12 inch, 0.25 inch)
- EasyHeat PC software
- Instrument case
Features:
- Fast and easy to operate: Intuitive measurement menus and fast-response Smart-Touch display
- Large 5" Smart-Touch HD display
- Ready to measure at the touch of a button from standby mode
- 4 strong magnets with rubber coating for material friendly mounting
- Get the measurement result faster: clearly structured measurement menus for all relevant measurements
- Create documentation (including measuring value, measuring location, customer data) easily on site
- Save PDF measurement reports directly in the instrument and always have them available
- E-mail measurement reports directly to the office or to customers via WLAN (hotspot)
- 10-hour rechargeable battery life: an average measurement period of 2 hours means the combustion analyzer is capable of being used for one week
- Integrated, extra-strong magnets for easy fixing during the measuring process
With this kit, you will be equipped for the most important measurements involving heating systems: the 300 flue gas analyzer is supplied with O2 and CO sensor (CO range up to 4,000 ppm), retrofittable NO Sensor, combustion probe, rugged hardshell case and practical accessories.
Protected display Scratch-resistant, recessed and with a special replaceable protective film. | |
Secure mounting 4 strong magnets with rubber coating particularly material friendly. | |
Bolted housing For that extra degree of stability when it really matters. | |
Robust sensors Extremely durable O2 sensor and automatic dilution up to 30,000 ppm CO. |
Specification
General technical data | |
Storage temperature | -4 to 122 °F |
Operating temperature | -23 to 113 °F |
Charging temperature | 32 to 113 °F |
Humidity application range | 15 to 90 %RH, not condensing |
Power supply | Rechargeable battery, USB power supply |
Rechargeable battery life | 10 hrs |
Protection class | IP 40 |
Memory | 1 million measuring values |
Display | 5.0" touch display, HD 1280 x 720 pixels, IPS (160 k) |
Flue gas probe | |
Length probe shaft | 11.811 in. / 300 mm |
Cable length | 7.218 ft. / 2.2 m |
Diameter probe shaft | 0.236 in. / 6 mm |
Product colour | Black |
Temperature maximum | 932 °F / 500 °C |
Diameter | 0.2 in. / 6 mm |
Weight | 18.77 oz. / 532 g |
Particle Filter - Pack of 10 | |
Weight | 0.42 oz. / 12 g |
Dimensions | Height: 0.11 in., D: 1.17 in. / height: 2.9 mm, D: 29.7 mm |
Product colour | White |
USB Power supply | |
Power supply | 5 V mains unit, 1 A, 230 V, Micro USB |
