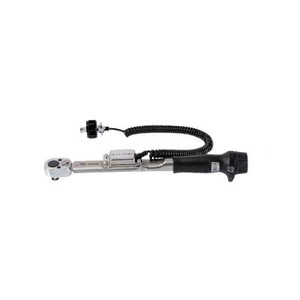

Tohnichi QSPCAMS12N Torque Wrench Overtorque Prevention Slip and Ratchet Head Type Preset Torque Wrench with Limit Switch, 4-12N.m, 40-120kgf.m, 40-100lbf.in, 1/4" Square Drive

Description

Tohnichi Error Proofing Torque Wrench, Preset, Rotary, 4 - 12 Nm

Error Proofing Torque Wrench, Preset, Rotary, 4 - 12 Nm, model# QSPCAMS12N by Tohnichi

Tohnichi BCSP70Nx15D

• A torque wrench that prevents 3 problems: under-tightening, over-tightening, and other human tightening errors.
• QSPCAMS and QSPCALS are rotary slip-type torque wrenches with wired limit switch. When set toque is reached, rotary slip occurs with simultaneous output of a contact signal from the limit switch.
• QSPCAMS and QSPCALS have a highly durable curly cord.
• A limit switch can be connected to a CNA-4mk3 count checker (sold separately) to easily create a tightening count management system.
• Signals from the limit switch are captured on a programmable logic controller (PLC) or similar device to establish a Tightening Assurance System using assembly line interlock controls.
• With the QSPCAFHP and QSPCAFH, when set torque is reached, rotary slip occurs and a tightened-to-completion radio signal is transmitted. The system is cordless, greatly increasing workability.
• QSPCAFHP and QSPCAFH torque wrenches can be used with the R-FH256 receiver (which is sold separately). With a connection to the I/O-FH256 multi-box (sold separately), a single receiver can recognize the IDs of up to four torque wrenches. Connect the I/O-FH256 and the CNA-4mk3 Count Checker to easily establish an error proofing system.
• The QSPCAMS / QSPCALS / QSPCAFHP / QSPCAFH conform to the IEC 61340-5-1:2007 Standard (protection of electronic devices from electrostatic phenomena).
• Compliant with calibration procedures of ISO 6789 Type II Class B.
