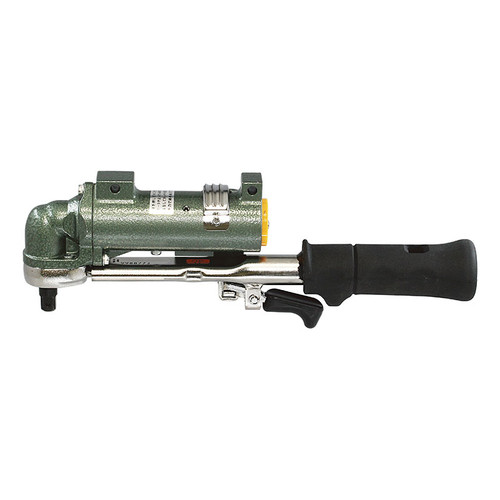

Tohnichi AC100N3 High Power Semi-Automatic Airtork, 20-100, 1N.m, 1/2" Square Drive

Description

Tohnichi High Power Semi-Automatic Airtork Torque Wrench, 20 - 100 Nm

High Power Semi-Automatic Airtork Torque Wrench, 20 - 100 Nm, model# AC100N3 by Tohnichi

Tohnichi BCSP70Nx15D

• Semi-Automatic Type: Air motor mounted on torque wrench allows for fast provisional tightening with accuracy of final tightening by torque wrench performed by hand.
• This tool replaces conventional two-step tightening process of pneumatic tool followed by click torque wrench into one tool for greater efficiency.
• Changing tightening torque is simple by using hex key to adjust scale on handle.
• Index finger trigger engages motor. Release after provisional tightening then use hand force until torque wrench "clicks" at required torque setting.
• Same features as A Series but with larger motor and higher provisional tightening torque.
• Easy calibration performed on standard torque wrench tester such as Tohnichi's DOTE4-G. Since torque wrench is controlling final applied torque no joint simulator is required.
• AC3 version features new ratchet square drive that accommodates anti-vibration sockets (not included) and improved trigger mechanism.
• No reaction arm needed–Up to 180Nm (or equivalent) with no reaction force.
• A drop in airline pressure will not affect applied torque.
• LS version available with limit switch, which creates error-proofing system when used with CNA-4mk3 count checker (sold separately). When torque set is achieved, limit switch is triggered confirming tightening completion–no more missed fasteners!
• ACFD and ACQSPLDC3 / ACQSPLD3 Models also output applied torque data (Special order upon request).

Specification
