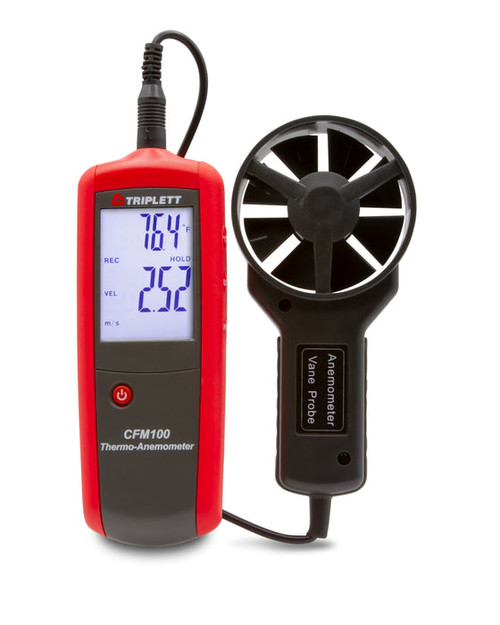

Triplett CFM100 CFM/CMM Thermo-Anemometer
- Brand
- Triplett
- SKU:
- CFM100
- UPC:
- 614395002541
- Availability:
- In Stock
Product Description
The Triplett Model CFM100 Anemometer measures Air Velocity up to 5900ft/min (30m/s), Air Flow (Volume) to 9900 CFM/CMM, and Air Temperature 122°F/50°C) for use in HVAC System installation and maintenance, cleanrooms, kitchen exhaust systems, wind power monitoring, construction, sailing/boating, vehicle aerodynamics and many other applications. It has side mounted function keys for easy one hand operation. Measurements are displayed on a dual backlit easy-to-read LCD display. Min/Max/Avg recalls highest, lowest and average (2 hour max) readings and Data Hold freezes the reading on the display when taking measurements in areas where the display cannot be easily viewed. In addition, a memory location stores a commonly used area size for easy recall (1 each for CFM and CMM).The auto power off (with disable) function consereves battery life. The CFM/CMM Anemometer includes (3) AAA batteries and a pouch case. 1 year warranty.
CFM-NIST Comes with Certificate of traceability to NIST Standards
Please add 11 business days lead-time for the NIST calibration process
Features
- Measures Air Velocity, Air Flow (Volume) and Temperature
- Side mounted function keys for easy operation
- Dual backlit easy-to-read LCD display
- Memory location stores commonly used area size for easy recall (1 each for CFM and CMM)
- Min/Max/Avg recalls highest, lowest and average (2 hour max) readings
- Data Hold freezes the display
- Auto power off with disable
Specifications
CFM100 | |
Air Velocity | Range (resolution) |
80 to 5900 ft/min (1ft/min) | |
0.4 to 30.00m/s (0.01m/s) | |
1.4 to 108.0km/h (0.1km/h) | |
0.9 to 67.0mph (0.1mph) | |
0.8 to 58.0 knots (0.1 knots) | |
Accuracy | ±3% |
Air Flow | Range (resolution) |
0 to 999900CFM (0.001CFM) | |
0 to 999900CMM (0.001CMM) | |
Air Temperature | 32 to 122°F/0 to 50°C (0.1°F/°C) |
Accuracy | 4°F/2°C |
Power | 3 x AAA batteries |
Dimensions | 6.3 x 2.4 x 0.8" (160 x 62 x 21mm) |
Weight | 7.1oz (200g) |
