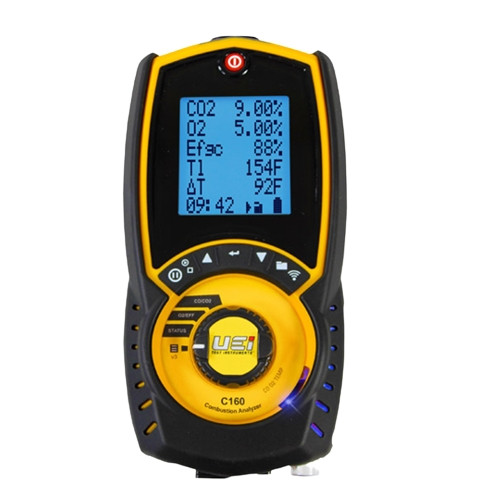

UEi C160 Flue Gas Analyzer (Instrument Only)
(No reviews yet)
Write a Review
Write a Review
UEI test instruments
UEi C160 Flue Gas Analyzer (Instrument Only)
$424.96
- Brand
- UEI test instruments
- SKU:
- C160
- UPC:
- 53533508321
- Availability:
- In Stock
Description
C160 Includes Only:
- Flue Gas Analyzer
- Rechargeable Batteries (AA)
- USB Charging cable
- Quick Start Guide
Features:
- Protective Water Trap
- High altitude Compensation
- 2 types of sensor protection
- NOx filtered CO sensor
- Low Flow Detection
- Large 6 Line backlit Display
- Memory: 30 Logs
Functions:
- Measures: CO, O2, Flue Temperature, Inlet Temperature
- Calculates: CO2, Losses, Efficiency (Net, Gross), Excess Air
The C160 Residential Combustion Analyzer is instrument only, easy to use with a rugged design, multiple sensor protections and altitude compensation. Essential information for installing and maintaining furnaces and boilers all in one device. Installation and maintenance of furnaces and boilers to optimize efficiency, reduce fuel costs and minimize the risk of CO poisoning
Note: Flue Probe (CP2) Sold Separately
Specification
| Temperature Measurement | |
| Flue Temperature Range | 32° to 1112°F (0° to 600°C) |
| Resolution | 1°F/C |
| Accuracy | ±(0.3% rdg +3.6°F (2°C)) |
| Flue Gas Measurement | |
| Oxygen Range | 0 to 21% |
| Oxygen Resolution | 0.10% |
| Oxygen Accuracy | ±0.2% |
| Carbon Monoxide Range | 0 to 2000ppm |
| Carbon Monoxide Resolution | 1ppm |
| Carbon Monoxide Accuracy | ±3ppm or 5% rdg (whichever is greater) |
| Calculations | |
| Carbon Dioxide Range | 0 to 30% |
| Carbon Monoxide Resolution | 1.00% |
| Carbon Monoxide Accuracy | ±0.3% rdg |
| Efficiency Range | 0 to 99.9% |
| Efficiency Resolution | 0.10% |
| Efficiency Accuracy | ±1.0% rdg |
| Excess Air Range | 0 to 250% |
| Excess Air Resolution | 0.10% |
| Excess Air Accuracy | ±0.2% rdg |
| Pre Programmed Fuels | Natural Gas, Propane, LPG, Light Oil, Heavy Oil, Bio Oil, Pellets |
| Battery Life | >8 hours (continuous with pump on) |
| Operating Conditions | |
| Temperature | 32 to 113°F (0 to 45°C) |
| Humidity | 15 to 90% R.H. (non-condensing) |
| Power Supply | Rechargeable Batteries, USB charging |
| Standards | |
| CE Conformity | Yes |
| RoHS | IEC62321-2:2013, IEC62321-1:2013, IEC62321-3-1:2013, IEC62321-5:2013, IEC62321-4:2013, IEC62321-7-2:2017, IEC62321-7-1:2015, IEC62321-6:2015 |
| REACH Compliant | Yes |
| AHRI 1260 Standard | Yes |
| Certification | The C160 is independently tested and certified to EN 50379, Parts 1-3 in accordance to 1st German Federal Emission Control Ordinance (BlmSchV) |
| EMC | EN50270:2015 |
| Safety | EN61010-1:2010 |
