UEI DL220 CATIV CLAMP METER&VOLTAGE TESTER, SLIDING JAW
(No reviews yet)
Write a Review
Write a Review
UEI test instruments
UEI DL220 CATIV CLAMP METER&VOLTAGE TESTER, SLIDING JAW
$115.45
- Brand
- UEI test instruments
- SKU:
- DL220
- UPC:
- 53533507508
Description
CATIV Clamp Meter and Voltage Tester
Functions
- 600V AC/DC
- 200A AC
- 2000? Resistance
- Audible continuity
- LRA Inrush
Features
- Sliding jaw* clamp
- Auto hold
- Auto ranging
- Back light
- Low battery indicator
- Auto power off
- Permanent test leads
- Auto calibration
- Latches for battery compartment
- Storage for test leads
- 2-Year limited warranty
The Sliding Jaw Clamp* combines a fork meter, a current hook and voltage tester into a single combined solution. The low profile sliding jaw allows for easy access in tight spaces while the closed clamp head provides better accuracy than open fork or current hook options. This CATIV rated meter offers AC and DC voltage, AC Amps, resistance, continuity, LRA inrush and data hold. The DL220 has a good feel with its ergonomic design and thumb leveler that slides the clamp jaw open and close. It features connected test leads, built-in test lead storage and a bright backlit display.
Specification
| AC Volts | |||
| Range | Resolution | Accuracy | Overload Protection |
| 1V to 199.9V | 0.1V | ±(1.5% + 5 dgts) | 600V |
| 1V to 199.9V | 1V | ||
| DC Volts | |||
| Range | Resolution | Accuracy | Overload Protection |
| 1V to 20V | 0.01V | ±(1.5% + 3 dgts) | 600V |
| 21V to 200V | 0.1V | ||
| 201V to 600V | 1V | ||
| Minimum measurement AC mV | 500mV/ DC mV:40mV | ||
| Response time (input; AC 100V) | 1 sec | ||
| Max displayed value | 660V AC/DC | ||
| High warning symbol input voltage | > AC30V/ > DC30V | ||
| Meter beeps input voltageMeter beeps input voltage | > AC 601V/ > 601VDC | ||
| Input impedance | 10M? | ||
| Overload protection | 600V AC RMS or 600V DC | ||
| AC Amps | |||
| Range | Resolution | Accuracy | Overload Protection |
| 1A to 200A | 0.1A | ±(2.0% + 5 dgts) | 600V |
| Frequency range: sine | 45Hz to 400Hz | ||
| Maximum displayed value | AC220A | ||
| Minimum displayed value | AC: 500mA | ||
| Resistance | |||
| Range | Resolution | Accuracy | Overload Protection |
| 200? to 2000? | 0.1? to 1? | ±(0.8% + 4 dgts) | 600V |
| Max displayed value | 2200? | ||
| Overload protection | 600V AC RMS or 600V DC | ||
| Continuity | |||
| Audible threshold | Response time | Output voltage | Overload Protection |
| Approx : < 40? | 50ms | 0.987V | 600V |
0 Reviews Hide Reviews Show Reviews
UEI test instruments
UEI DL200 CATIII CLAMP METER&VOLTAGE TESTER, SLIDING JAW
$54.95
DescriptionFeaturesSliding jaw* clampData holdAuto rangingLow battery indicatorAuto power offPermanent test leadsStorage for test leadsAuto calibrationLatches for battery compartmentFunctions600V...
UEI test instruments
UEI NCV3 CATIV 1000V DUAL LEVEL NON-CONTACT VOLTAGE TESTER
$26.95
DescriptionNon-Contact Voltage TesterSafely detect high & low voltage with this CAT IV 1000V testerIncludes:Batteries (2) AAAFeatures:Hi/Lo voltage detectionVisual LED alertAudible...
UEI test instruments
UEI DL379B DUAL DISPLAY HVAC CLAMP METER, CATIV 300V
$143.61
DescriptionDL379B Includes Only:Manual (Eng)Test LeadsBatteries AAA (2)Pouch/CasesTemp ProbeFeatures:Dual displayHigh contrast backlit display Detachable clamp headMin/MaxInput jack lockWorklightLow...
UEI test instruments

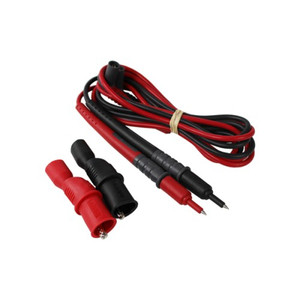

UEI ATL57 CATIV TEST LEADS (SILICONE)
