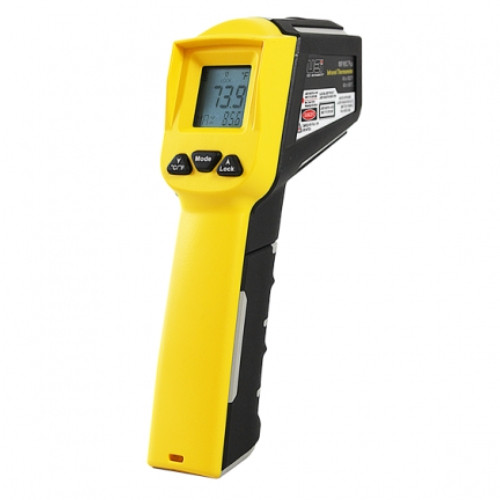

UEI INF165CINF165C 12:1 Infrared Thermometer
$52.66
- Brand
- UEI test instruments
- SKU:
- INF165C
- UPC:
- 53533507416
Description
INF165C, 12:1 Circular Laser Infrared Thermometer
Includes:
- 2 (AAA) Batteries
- Carrying case
- Manual
Functions:
- Circular laser targeting
- 12:1 Distance to spot ratio
- -76° to 1022°F (-60° to 550°C)
- Max value capture
- Auto power off
Features:
- Circular laser targeting
- Max value capture
- Selectable emissivity: 0.95 (default) or 0.70
- Auto power off
Applications:
- Check register temperatures
- Hard to reach registers and appliances
- Faulty breakers and electrical panels
- Motors, fan motors and other moving parts
- Boilers, hanging heaters and radiators
- Troubleshoot hydronic systems
Specification
Temperature Range | -76° to 1022°F (-60° to 550°C) |
Operating Temperature | 32° to 122°F (0° to 50°C) |
Accuracy (Tobj=15-35°C, Tamb=25°C) | ± 2.7°F (1.5°C) |
Accuracy (Tamb=23 ± 3°C) | Tobj=0~550°C: ± 2% of reading or 2°C (4°F) whichever is greater Tobj=-60~0°C: ± (2°C+0.05/degree C) |
Emissivity | 0.95 or 0.70 (default is 0.95) |
Resolution | -9.9° to 199.9° C/F) 0.2°C (0.5°F) otherwise 1° C/F |
Response Time | 1 sec. |
Distance-to-Spot Ratio | 12:1 |
Dimension | 6.43" x 4.62" x 1.92" (163.37 x 117.33 x 48.72mm) |
Weight | 7.58 oz (215g) including batteries |
