WINTER 9WPSH102CCVN2S 9WPS SWITCH, ALL SS, 1000 TO 7500 PSI, DPDT, 18" LEADS, 1/2"NPT
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
WINTER 9WPSH102CCVN2S 9WPS SWITCH, ALL SS, 1000 TO 7500 PSI, DPDT, 18" LEADS, 1/2"NPT
MSRP:
Now:
$1,290.76
Was:
(You save
)
- Brand
- U.S. Winter instruments
- SKU:
- 9WPSH102CCVN2S
- UPC:
- Availability:
- In Stock
Winters, 9WPSH102CCVN2S, Explosion Proof Compact Pressure Switch, 9 Wps, 1000 to 7500 Psi, 1/2" Npt
Features:
- VAC to 10,000 psi pressure range
Winters, 9WPSH102CCVN2S, Explosion Proof Compact Pressure Switch, 9 Wps, 1000 to 7500 Psi, 1/2" Npt
Features:
- VAC to 10,000 psi pressure range
- Explosion proof SPDT or DPDT switch
- Stainless steel with FKM and PTFE wetted parts
- ANSI dual seal design
- Diaphragm seal/piston sensor
- Safe to adjust during operation
- Lockable setpoint wheel to avoid shifting during operation
- ±2% of full scale accuracy
- NEMA 4X, 7 & 9 enclosure rating
- CSA approved for hazardous locations
- Designed for sour gas applications requiring NACE standards MR0175-2009
- CRN registered (up to 3,000 psi models)
Applications:
- Suitable for hazardous locations including safety panels and with pump and gas compressors, turbines and other oil & gas applications
- Appropriate for oil & gas, power plants, chemical facilities and water treatment
- Designed for hazardous locations where an explosion proof switch is required
Housing Material | 316 SS |
Port Material | 316 SS |
Accuracy | ±2% of full scale |
Pressure Connection | 1/4" NPTF (1/2" NPTF optional) |
Electrical Connection | 1/2" NPTM, 18 AWG, 18" (457 mm) free leads |
Wetted Parts | VACuum and low pressure - seals: FKM diaphragm High pressure - piston: SS with PTFE backup ring and FKM o-ring |
Set Point Adjustment | Internal adjustment wheel with built in locking set-screws |
Deadband | Fixed |
Contact Rating | 11 amps at 125/250 VAC 5 amps at 30 Vdc |
No. of Contacts | 1 x SPDT (2 x SPDT optional) |
Vibration | 10 g 10-500 Hz, MIL-STD-202F |
Shock | 50 g 11 ms, MIL-S-901C |
EMI/RFI Protection E | EN55011 |
Ambient Temperature | -40°F to 149°F (-40°C to 65°C) |
Enclosure Rating | NEMA 4X, 7 & 9 |
Approvals | CSA approved (Canada and USA) for use in hazardous locations Class I, Div. 1, Groups B, C & D; Class II, Div. 1, Groups E, F & G CRN registered (up to 3,000 psi model) ANSI Dual Seal Compliant NACE MR0175-2009 |
Typical Life | 2.5 million cycles |
Weight | 1.85 lbs (839 grams) |
0 Reviews Hide Reviews Show Reviews
U.S. Winter instruments
WINTER 9WPSH102CCVN4S 9WPS SWITCH, ALL SS, 1000 TO 7500 PSI, DPDT, 18" LEADS, 1/4"NPT
MSRP:
Now:
$1,290.76
Was:
Winters 9WPSH102CCVN4S OffersFeatures
V AC to 10,000 psi pressure range
Explosion proof SPDT or DPDT switch
Stainless steel with FKM and PTFE wetted parts
ANSI dual seal design
Diaphragm...
Add to Cart
The item has been added
U.S. Winter instruments
WINTER 9WPSH072CCVN2S 9WPS SWITCH, ALL SS, 150 TO 1000 PSI, DPDT, 18" LEADS, 1/2"NPT
MSRP:
Now:
$1,290.76
Was:
Winters 9WPSH072CCVN2S OffersFeatures
V AC to 10,000 psi pressure range
Explosion proof SPDT or DPDT switch
Stainless steel with FKM and PTFE wetted parts
ANSI dual seal design
Diaphragm...
Add to Cart
The item has been added
U.S. Winter instruments
WINTER 9WPSL062CCVN2S 9WPS SWITCH, ALL SS, 1 TO 30 PSI, DPDT, 18" LEADS, 1/2"NPT
MSRP:
Now:
$1,290.76
Was:
Winters, 9WPSL062CCVN2S, Explosion Proof Compact Pressure Switch, 9 Wps, 1 to 30 Psi, 1/2" NptFeatures:VAC to 10,000 psi pressure rangeExplosion proof SPDT or DPDT switchStainless steel with FKM and...
Add to Cart
The item has been added
U.S. Winter instruments
WINTER 9WPSH072CCVN4S 9WPS SWITCH, ALL SS, 150 TO 1000 PSI, DPDT, 18" LEADS, 1/4"NPT
MSRP:
Now:
$1,290.76
Was:
Winters, 9WPSH072CCVN4S,Explosion Proof Compact Pressure Switch, 9 Wps, 150 to 1000 Psi, 1/4" NptFeatures:VAC to 10,000 psi pressure rangeExplosion proof SPDT or DPDT switchStainless steel with FKM...
Add to Cart
The item has been added

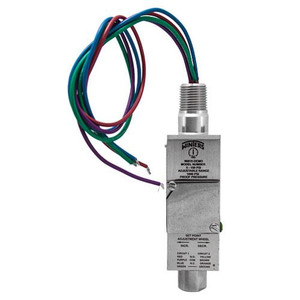

U.S. Winter instruments
