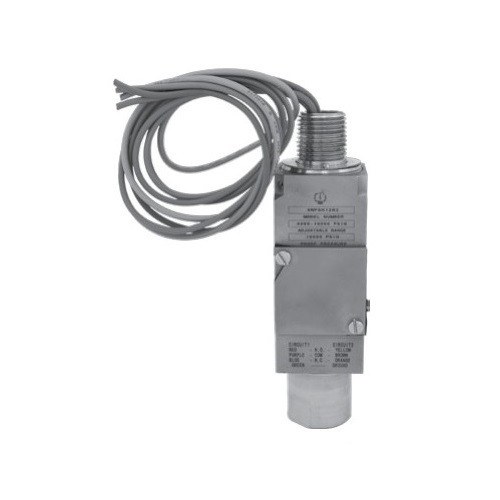

WINTER 9WPSL062CCVN2S 9WPS SWITCH, ALL SS, 1 TO 30 PSI, DPDT, 18" LEADS, 1/2"NPT
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
WINTER 9WPSL062CCVN2S 9WPS SWITCH, ALL SS, 1 TO 30 PSI, DPDT, 18" LEADS, 1/2"NPT
$1,483.33
- Brand
- U.S. Winter instruments
- SKU:
- 9WPSL062CCVN2S
- UPC:
- 6.28E+11
- Availability:
- In Stock
Winters, 9WPSL062CCVN2S, Explosion Proof Compact Pressure Switch, 9 Wps, 1 to 30 Psi, 1/2" Npt
Features:
- VAC to 10,000 psi pressure range
- Explosion proof SPDT or DPDT switch
- Stainless steel with FKM and PTFE wetted parts
- ANSI dual seal design
- Diaphragm seal/piston sensor
- Safe to adjust during operation
- Lockable setpoint wheel to avoid shifting during operation
- ?2% of full scale accuracy
- NEMA 4X, 7 & 9 enclosure rating
- CSA approved for hazardous locations
- Designed for sour gas applications requiring NACE standards MR0175-2009
- CRN registered (up to 3,000 psi models)
Applications:
- Suitable for hazardous locations including safety panels and with pump and gas compressors, turbines and other oil & gas applications
- Appropriate for oil & gas, power plants, chemical facilities and water treatment
- Designed for hazardous locations where an explosion proof switch is required
| Housing Material | 316 SS |
| Port Material | 316 SS |
| Accuracy | ?2% of full scale |
| Pressure Connection | 1/4" NPTF (1/2" NPTF optional) |
| Electrical Connection | 1/2" NPTM, 18 AWG, 18" (457 mm) free leads |
| Wetted Parts | VACuum and low pressure - seals: FKM diaphragm High pressure - piston: SS with PTFE backup ring and FKM o-ring |
| Set Point Adjustment | Internal adjustment wheel with built in locking set-screws |
| Deadband | Fixed |
| Contact Rating | 11 amps at 125/250 VAC 5 amps at 30 Vdc |
| No. of Contacts | 1 x SPDT (2 x SPDT optional) |
| Vibration | 10 g 10-500 Hz, MIL-STD-202F |
| Shock | 50 g 11 ms, MIL-S-901C |
| EMI/RFI Protection E | EN55011 |
| Ambient Temperature | -40?F to 149?F (-40?C to 65?C) |
| Enclosure Rating | NEMA 4X, 7 & 9 |
| Approvals | CSA approved (Canada and USA) for use in hazardous locations Class I, Div. 1, Groups B, C & D; Class II, Div. 1, Groups E, F & G CRN registered (up to 3,000 psi model) ANSI Dual Seal Compliant NACE MR0175-2009 |
| Typical Life | 2.5 million cycles |
| Weight | 1.85 lbs (839 grams) |
