WINTER BBV3422 DBL BBV SS 3/4Mx1/2FNPT HARD 10K 3HDL
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
WINTER BBV3422 DBL BBV SS 3/4Mx1/2FNPT HARD 10K 3HDL
$704.19
- Brand
- U.S. Winter instruments
- SKU:
- BBV3422
- UPC:
- 6.28311E+11
- Availability:
- In Stock
Winters, BBV3422, 3/4" x 1/2 Double Block & Bleed Valve, Stainless Steel (Female x Female)
Features
- Combines isolating and venting in a single valve, eliminating the need for tubing and fittings
- Block valve isolates the downstream process fluids, and the bleed valve exhausts upstream fluids enabling instruments to be removed without disturbing the permanent piping installation on the bottom
- The 1/4? NPT vent plug is located 90? to the left and may be removed and replaced with exhaust piping to direct the fluids to a safe location
- 316 stainless steel
- CRN registered
Applications
Ideally suited for severe duty oil and gas installations including refineries and processing plants as well as water treatment plants, power plants and hydraulic applications where additional safety for shut-down and media venting is required
| NPT Connection | 3/4? Female x 1/2? Female |
| Material | Stainless Steel |
| Seat | Hard Seat |
| Max. Pressure | 10,000 psi |
0 Reviews Hide Reviews Show Reviews
U.S. Winter instruments
WINTER BBV3422N DBL BBV SS 3/4Mx1/2FNPT HARD 10K 3HDL NACE
$844.96
Winters, BBV3422N, 3/4" x 1/2 Double Block & Bleed Valve, Stainless Steel NACE (Female x Female)FeaturesCombines isolating and venting in a single valve, eliminating the need for tubing and...
U.S. Winter instruments
WINTER BBV3402 DBL BBV SS 3/4Fx1/2FNPT HARD 10K 3HDL
$704.19
Winters, BBV3402, 3/4" x 1/2" Double Block & Bleed Valve, Stainless Steel (Male x Female)FeaturesCombines isolating and venting in a single valve, eliminating the need for tubing and...
U.S. Winter instruments
Winters DBL BBV,SS,1/2Fx1/2FNPT,HARD,10K,3HDL BBV3421
$612.16
Winters, BBV3421, BBV 1/2" NPTF x 1/2" NPTF 10,000 PSI Hard Seat Stainless Steel Double BlockFeatures:Combines isolating and venting in a single valve, eliminating the need for tubing and...
U.S. Winter instruments

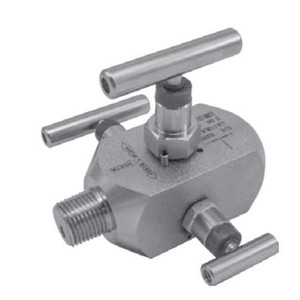

Winters DBL BBV,SS,1/4Mx1/4FNPT,HARD,10K,3HDL BBV3400
